Linkhttps://www.evilution.co.uk/mod/451-diesel-54bhp-safe-mode.htm Copy to ClipboardWon’t Go Over 3000rpm?
A loss of power and no check engine light? That’s safe mode.
The Diesel Engine
The diesel engine used in all fortwos is essentially the same Mercedes built engine since 2000. All that has changed is the parts that are bolted to it and the way it is controlled.
All the way up to September 2009, the 3 cylinder, 800cc diesel engine was the most reliable engine available in a fortwo. In October 2009, all of that changed.
But It’s The Same Engine
Yep, unfortunately it’s all the stuff bolted to it and the electronics that have let the side down.
Why Did They Change It?
From 2000 to 2009, the CDI engine conformed to Euro 4 specifications. The standards were set in January 2005 so the fortwo diesel had a 5 year head start and enjoyed 9 years without the need for any new emissions regulations. However, in September 2009, Europe introduced the Euro 5 specifications.
The new regulations required that Nitrogen Oxide be reduced from 0.25g/km to 0.18g/km, HC+NOx reduced 0.30g/km to 0.23g/km and Particulates from 0.025g/km to a very low 0.005g/km.
How Did They Do It?
They added a DPF (Diesel Particulate Filter) which removes the particulates from the exhaust gas and heats them up to to about 600 degress celcius and burns them off. Unfortunately, a standard catalytic convertor only gets to about 500 degrees celcius.
The problem is how DPF’s work. They spend most of their time not being hot enough to burn off the particulates. They just sit there collecting the particulates until the DPF is blocked enough to increase the back pressure to a set point. Once the DPF pressure sensor gets to a certain point, the car increases the fuel use of the engine to make the DPF get hotter. The hot DPF burns off the captured particulates and naturally unblocks itself. This is known as regeneration.
So What Causes The Problem?
Well, take your pick! Firstly (and secondly) there are 2 temperature sensors.

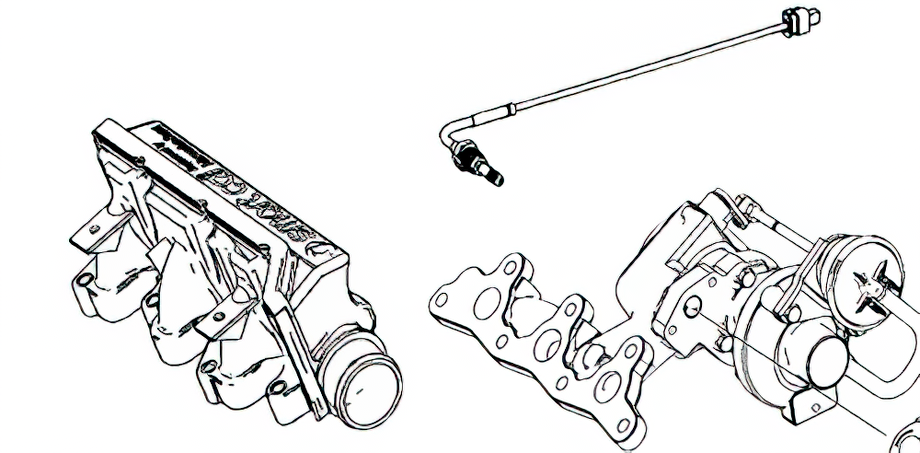

The upstream one in the turbo…

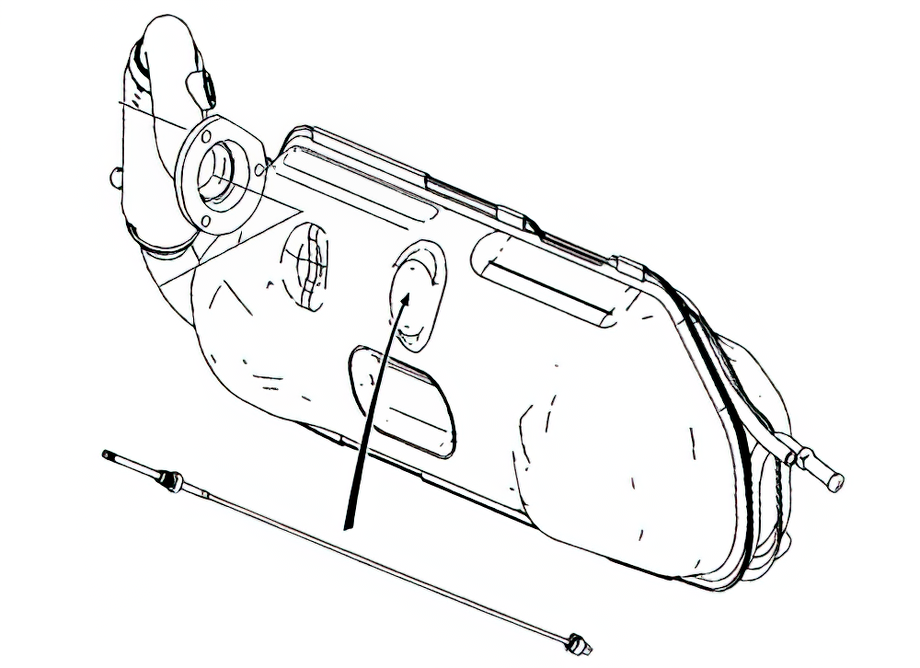

…and the downstream one in the exhaust.
These measure the temperature of the exhaust gas and the DPF. They let the ECU (Engine Control Unit) know when the DPF is at the correct temperature. The ECU will then regulate the fueling to keep the DPF at its ideal temperature.
Unfortunately, these are prone to failure. As with lambda sensors, they expect to both see a very similar range. So when 1 temperature sensor fails, the car doesn’t know if the DPF is too cold to work or if the engine isn’t getting enough fuel. To save the engine and to attempt to keep within the emissions standards, the ECU panics and puts the car into a reduced power mode.
One massive drawback is the price. At time of writing (2014), a replacement temperature sensor from smart is nearly £100. They are already on the 4th revision of the exhaust temperature sensor and the 3rd revision of the turbo temperature sensor.
Exhaust Temperature Sensor Revisions
A 008 153 25 28
A 000 905 08 32
A 001 905 15 00
A 000 905 17 32
Turbo Temperature Sensor Revisions
A 008 153 32 28
A 001 905 13 00
A 000 905 15 32
Changing the temperature sensors can be found here.

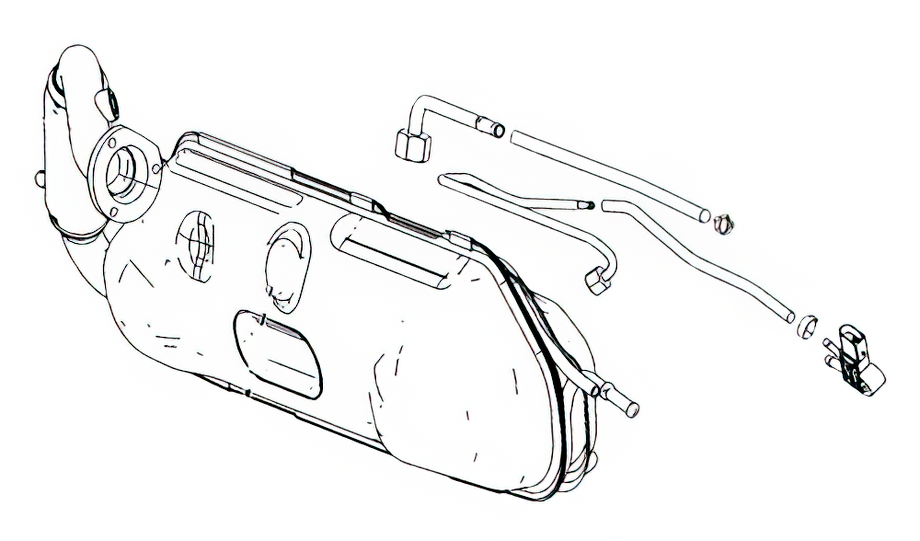

The third problem is with the DPF pressure sensor. This measures and compares the pressure from either side of the DPF to tell when it is becoming blocked and tells the car to start regeneration to burn off the particulates. Unfortunately this sensor is also prone to failure and is on revision 2.
If this fails then the ECU doesn’t know how blocked the DPF is. If the DPF becomes totally blocked, the car will not run and the DPF would need replacing (very very expensive). So again, the car panics and goes into a reduced power mode. In this instance it is to get you to go to a garage and get it fixed.
Changing the pressure sensor can be found here.
The forth issue is a vacuum pressure sensor for the EGR (Exhaust Gas Recirculation) valve. However, for once, the sensor doesn’t fail. It just receives incorrect data. The fault was a strange one that took smart a while to figure out. The sensor is piezo transducer which can measure pressure deflection and vibration. The problem was that part of the wiring loom or brake vacuum line was running close to the sensor and eventually started vibrating and tapping the back of the sensor. This caused a malfunction which reported impossible readings to the ECU which panics and puts the car in limp mode and a stored fault code of P2359.
Smart actually released a fix for this issue which routed the wiring and pipes away from the sensor.
Alternatively, we are now starting to see the small vacuum hoses splitting which leaks the vacuum and causes the fault.
Fixing the P2359 fault can be found here.
The fifth issue is that the EGR valve can get stuck open or closed. It could be from soot build up, corrosion from leaking coolant, a combination of coolant and soot causing a sludge or simply a fault with the solenoid that controls the EGR valve.
This could bring up a P2355 fault.
All you can do is strip, inspect and clean the EGR valve and housing and ensure that the valve is moving correctly.
The sixth issue is a vacuum pressure sensor for the wastegate valve. The sensor doesn’t fail. It just receives incorrect data. This is because we are now starting to see the small vacuum hoses splitting which leaks the vacuum and causes the wastegate to not function correctly. The fault will depend on if the car over boosts because of the non functioning wastegate or if the pressure sensor notices the leak. It could be both.
More info can be found here.
Finally, there are rumours of a wastegate actuator fault. The small amount of information I have doesn’t confirm or deny the problem exists. There are tales of wastegate actuators overheating and failing (internal gasket leak). The result being an open wastegate so no power to the engine or a closed wastegate and the over boosting putting the engine into safe mode (reduced power mode).
Unsubstantiated info suggests that smart have been replacing the wastegate actuator mounting bracket with a revised version that sites the wastegate actuator slightly further away from the turbo to reduce the radiated heat. This could be an issue with the increased temperature during DPF regeneration.
So, To Clarify The Loss Of Power Problems
1 – Upstream (turbo) temperature sensor
2 – Downstream (exhaust) temperature sensor
3 – DPF pressure sensor
4 – Wires touching the EGR transducer sensor casing
5 – Non functioning EGR valve
6 – Over heating wastegate actuator
7 – Wastegate actuator fault
Possible Error Codes
P1400
P2355
P2359
P2660
P2661
P2783
