The photos are from a 700cc engine but the 600 is pretty much the same.
450 Engine Removal
Step 0: Disconnect the battery earth connection.
Look at the engine, just above the oil filter. You’ll see the coolant drain plug.
![](/wp-content/uploads/smartengine/removal/452remove/engineremove1.jpg)
Use a 6mm allen key to open it a couple of turns. I recommend putting some hose over it to guide the coolant.
![](/wp-content/uploads/smartengine/removal/452remove/engineremove2.jpg)
This will stop it making a mess and unnecessarily soaking your driveshaft.
![](/wp-content/uploads/smartengine/removal/452remove/engineremove3.jpg)

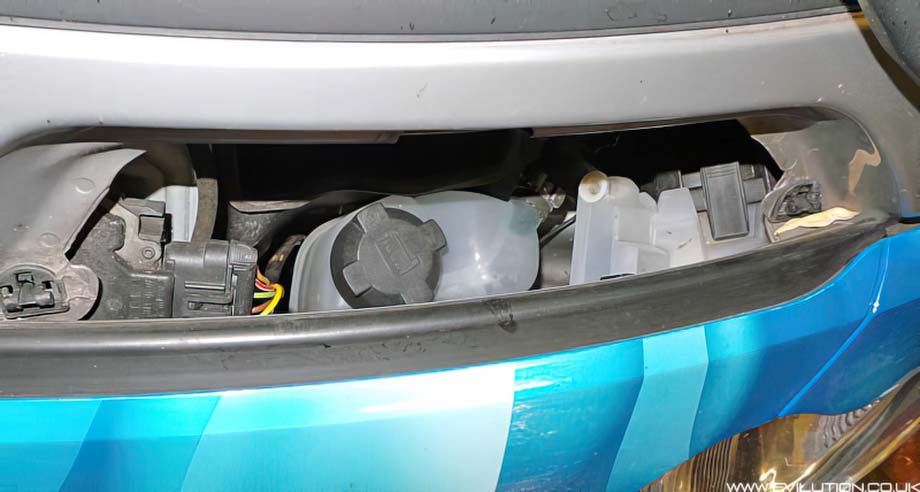

Once you hose is in position, open the coolant tank reservoir cap. The coolant will flow from the car.
![](/wp-content/uploads/smartengine/coolant/450drain/4.jpg)
Whilst it’s doing that, remove the oil. If you have fitted a sump with a drain plug, open it and catch the oil.
![](/wp-content/uploads/smartengine/removal/452remove/engineremove5.jpg)

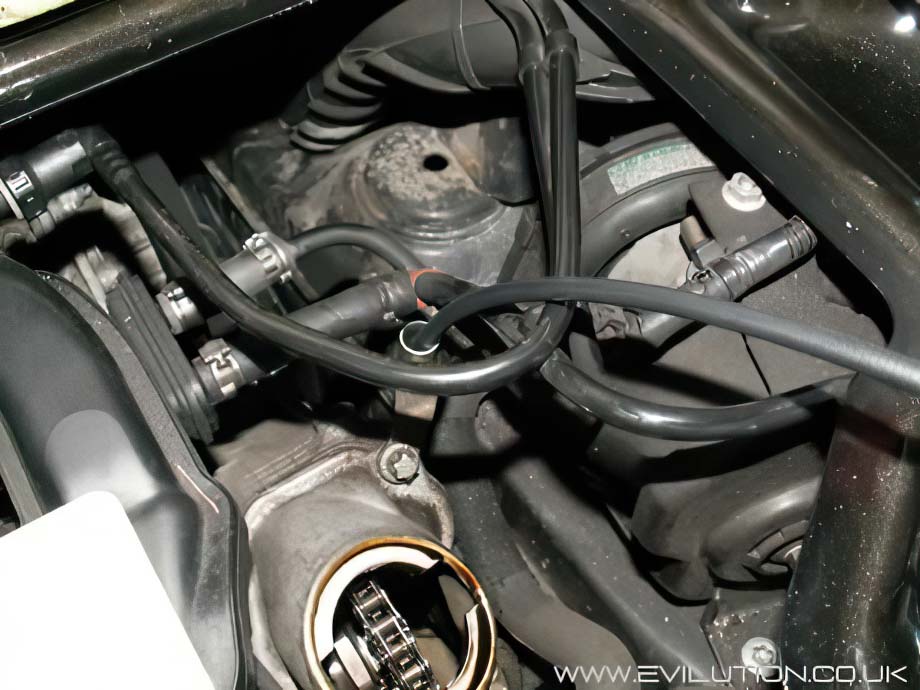

If your car has the standard sump, suck the oil out with a Manual oil removal pump
![](/wp-content/uploads/smartservice/oilchange/oil2.jpg)
Disconnect both of the ECU wiring connectors from the ECU.
![](/wp-content/uploads/smartengine/removal/452remove/engineremove7.jpg)
Jack up the car, remove the wheel and the nearside wheelarch liner to gain access to the brake lines.
![](/wp-content/uploads/smartengine/removal/452remove/engineremove8.jpg)
Pull out the retaining clips that hold the brake lines to the bracket.
![](/wp-content/uploads/smartengine/removal/54cdiremove/engineremove21.jpg)
Then use a 17mm and an 11mm spanner to undo the pipes.
Stop them dripping by capping them with these special pipe caps, see here. or use pipe clamps
![](/wp-content/uploads/smartengine/removal/452remove/engineremove10.jpg)
Follow the hoses as the run behind the sill. You’ll see a plastic clamp. Remove the 10mm nut and open the clamp.
Disconnect both of the off-white connectors just behind it. These are for the wheel rotation sensors.
![](/wp-content/uploads/smartengine/removal/452remove/engineremove9.jpg)
On the engine cradle just above the brake lines, you’ll see a connector. Disconnect it. Replace the road wheel that you removed for access.
