Wheel Bolt Torque Figures

Mod Details
PremiumNo Difficulty Mod ID1694 For450 Fortwo451 Fortwo452 Roadster453 Fortwo/Forfour454 Forfour Linkhttps://www.evilution.co.uk/mod/wheel-bolt-torque-figures.htm Copy to Clipboard
Model Newton Metres Foot Pounds
450 Fortwo 110Nm 81 ft/lb
Crossblade 110Nm 81 ft/lb
451 Fortwo 110Nm 81 ft/lb
452 Roadster 120Nm 88.5 ft/lb
453 Fortwo & Forfour 105Nm 77.5 ft/lb
454 Forfour 120Nm 88.5 ft/lb

Why is the Roadster wheel torque different to the fortwo that has exactly the same wheel, suspension, hubs and brakes?

Insert ridiculous reason here. It’s not like the Roadster creates a shit load of power. I had a 450 with more power than a standard Roadster and the 451 turbo has more power than a standard Roadster.

Considering the bolts are quite small compared to other “normal” cars, I wouldn’t recommend over torquing them.

When Should I Check The Wheel Bolt Torque?

If you have taken the wheels off, refit and torque. Recheck the next day and then a week after.
If the wheels haven’t come off, it’s perfectly acceptable to check them every 3 months.

How Do I Check Them?

You really should own a torque ratchet. You don’t need anything high quality.

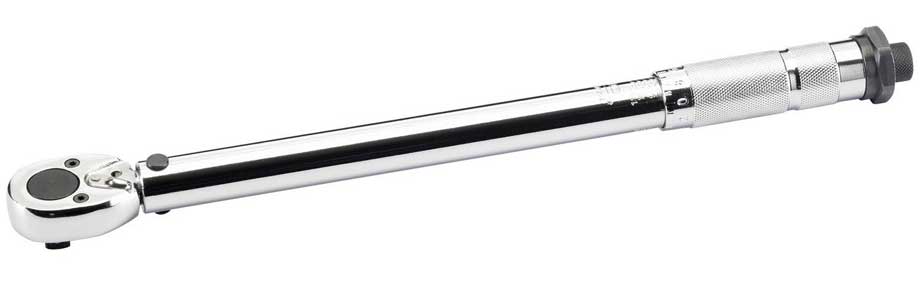

Torque Ratchet

Click the photo above. Make sure the one you’re buying goes up to the required figures at least.
