PremiumNo Difficulty Mod ID1563 Creditevilution For Linkhttps://www.evilution.co.uk/mod/600cc-secondary-fuse-box.htm Copy to ClipboardSecondary Fuse Box
The 600cc smart fortwo (1998 to 2002) (or city-coupe and city-cabrio as it was called back then) had a ZEE unit under the dash instead of the SAM unit as found on the 700cc fortwo. The ZEE unit didn’t have many fuses or relays so smart added an extra fuse and relay box underneath the nearside seat, under the carpet. It was power and switching for parts of the engine and transmission. Because it controls power to the transmission, it’s one of the reasons you could be experiencing the 3 bar transmission fault.
You don’t have to remove the seat but it does make things easier. You can push the seat forward and work between the gap in the carpet.
You’ll see a long thin black box with 3 connectors.
Held each end with a 10mm plastic nut.
The relays and fuses are protected by a cover…
…which is held in place with 3 clips.
Lever the clips away and remove the top to reveal the relays and fuses.

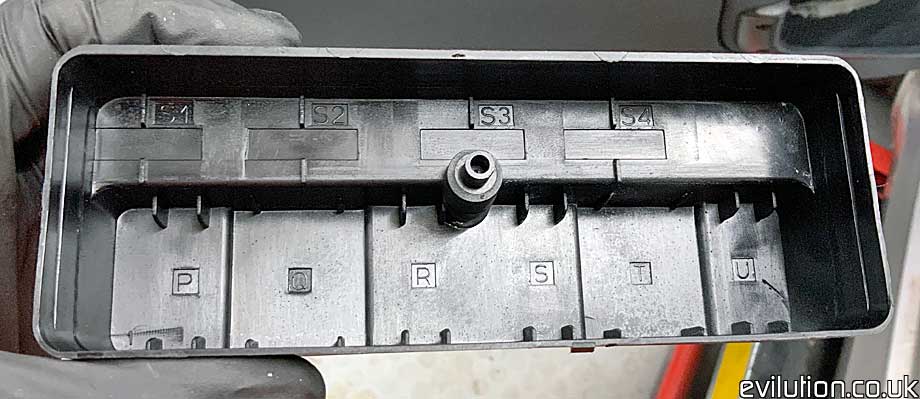

The lid contains numbers and letters that probably mean something to smart.

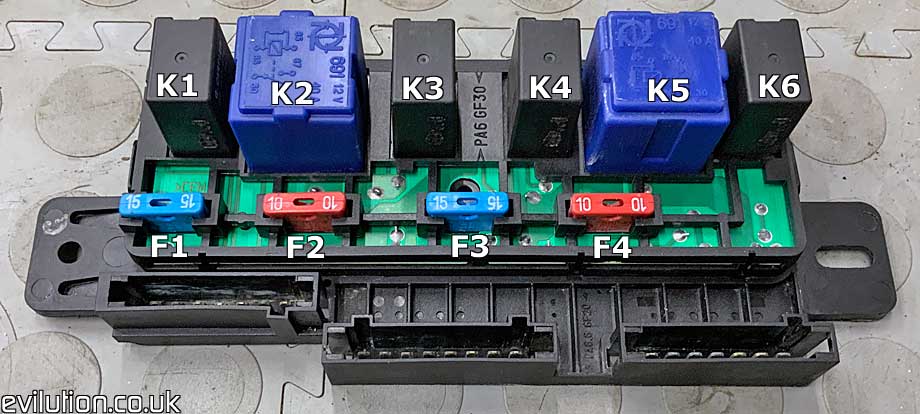

Relays & Fuses
Petrol
Relay Number | Function |
K1 | Fuel Pump |
K2 | Auto transmission |
K3 | Main Relay (powers F3, F4, K3) |
K4 | Intercooler fan |
K5 | Starter Relay |
K6 | A/C Compressor |
Fuse Number | Function | Rating |
F1 | Intercooler, AC magnetic clutch | 15 Amps |
F2 | Fuel pump | 10 Amps |
F3 | ECU, Injectors | 15 Amps |
F4 | Tank vent valve, Lambda sensor | 10 Amps |
Diesel
Relay Number | Function |
K1 | Fuel Pump |
K2 | Auto transmission |
K3 | Main Relay (powers F3, F4, K3) |
K4 | Intercooler fan |
K5 | Starter Relay |
K6 | A/C Compressor |
Fuse Number | Function | Rating |
F1 | Intercooler, AC magnetic clutch | 15 Amps |
F2 | Fuel pump | 10 Amps |
F3 | ECU, Electrical Cut off, Pressure Valve | 15 Amps |
F4 | Glow plug timing control | 10 Amps |
Electrical Connections
The secondary fuse box has 3 connections and the cover actually labels them as 1, 2 and M.
Wiring
Connector 1
Wire Colours | Connection | Function | |
1 | Black Pink | ECU Plug 1, Pin 97, | Fuel Pump Relay Control |
2 | Red Black | Fuel pump | Fuel Pump |
3 | Red Blue | Primary fuse box fuse 22 | Circuit 30, Unfused |
4 | Red Blue | Primary fuse box fuse 22 | Circuit 30, Unfused |
5 | Blue | ECU Plug 1, Pin 111 | Transmission Relay Control |
6 | Black White | ECU Plug 1, Pin 117 | Transmission 1 Supply Voltage |
7 | Pink Blue | ECU Plug 1, Pin 115 | Transmission 2 Supply Voltage |
Connector 2
Wire Colours | Connection | Function | |
1 | Green | Charcoal valve solenoid | Motor Electronics 2 |
2 | White Yellow | ECU Plug 1, Pin 105 | Intercooler Relay Control |
3 | Green Blue | ECU Plug 1, Pin 113 | AC Compressor Relay |
4 | Red Green | Primary fuse box fuse 9 | Switched positive, Unfused |
5 | Yellow | ECU Plug 1, Pin 112 | Starter Motor Lockout Relay |
6 | Red | Battery + | Circuit 30 |
7 | Brown | Earth | Ground |
8 | Black Yellow | ECU Plug 1, Pin 119 | Motor Electronics 1 |
Connector M
Wire Colours | Connection | Function | |
1 | Green | Coil pack 1+2+3 | Switched Positive, Unfused |
2 | Green | Injector 1+2+3 | Motor Electronics 1 |
3 | Blue | AC compressor | AC Pressure Switch |
4 | – | – | – |
5 | Blue | Starter motor trigger | Starter Solenoid Switch |
6 | Yellow | Intercooler fan | Intercooler Fan |
7 | White | Lambda sensor Pin 1 | Motor Electronics 2 |
Relays
Petrol
Relay Number | Function |
K1 | Fuel Pump |
K2 | Auto transmission |
K3 | Main Relay (powers F3, F4, K3) |
K4 | Intercooler fan |
K5 | Starter Relay |
K6 | A/C Compressor |
Fuse Number | Function | Rating |
F1 | Intercooler, AC magnetic clutch | 15 Amps |
F2 | Fuel pump | 10 Amps |
F3 | ECU, Injectors | 15 Amps |
F4 | Tank vent valve, Lambda sensor | 10 Amps |
Diesel
Relay Number | Function |
K1 | Fuel Pump |
K2 | Auto transmission |
K3 | Main Relay (powers F3, F4, K3) |
K4 | Intercooler fan |
K5 | Starter Relay |
K6 | A/C Compressor |
Fuse Number | Function | Rating |
F1 | Intercooler, AC magnetic clutch | 15 Amps |
F2 | Fuel pump | 10 Amps |
F3 | ECU, Electrical Cut off, Pressure Valve | 15 Amps |
F4 | Glow plug timing control | 10 Amps |
