Mod Description

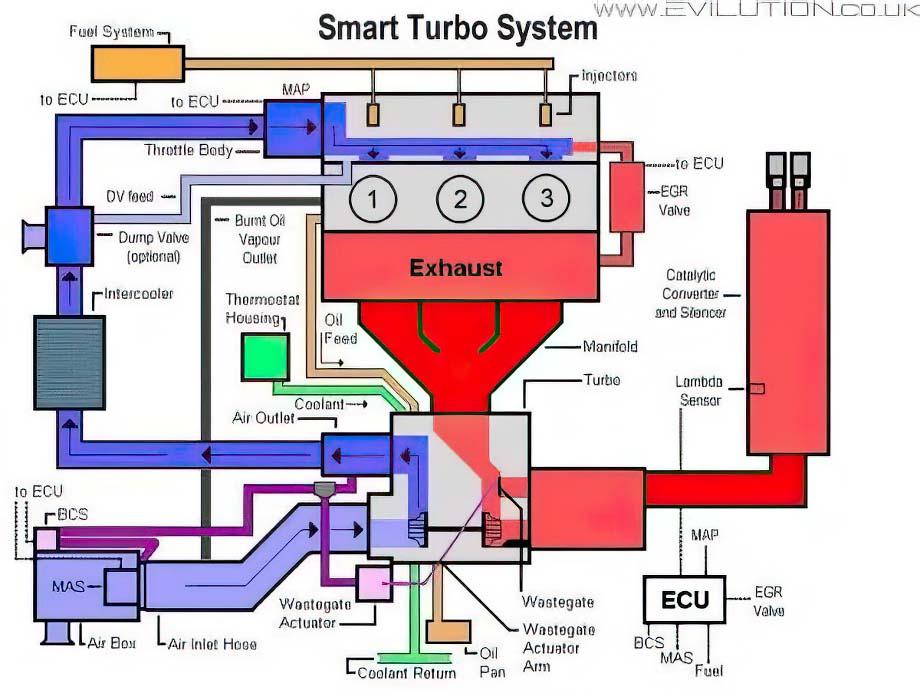

Adapted from a picture by Gerald Drane to make it relevant to the Smart.Mod Details
PremiumNo Difficulty
Mod ID145
For
Linkhttps://www.evilution.co.uk/mod/basic-smart-engine-diagram.htm Copy to Clipboard
MAS – Mass Air Sensor – Measures the density of the air.
BCS – Boost Control Solenoid – Controls the bypass wastegate.
MAP – Mass/Manifold Absolute Pressure – Measures the air pressure.
ECU – Electronic Control Unit – Controls boost, fuelling and air intake.
EGR Valve – Exhaust Gas Recirculating valve –
Feeds hot exhaust air into the engine on start to quickly warm the engine.
