Mod Description
How to change the engine coolant temperature sensor on the Suprex engineMod Details
PremiumNo Difficulty
Mod ID857
Creditevilution
For
Linkhttps://www.evilution.co.uk/mod/thermostat-sensor-change.htm Copy to ClipboardModel
This guide covers the:
Fortwo 450 599cc
Fortwo 450 698cc
Roadster 452 698cc
Fortwo 451 Diesel 45bhp
Fortwo 451 Diesel 54bhp
Removal

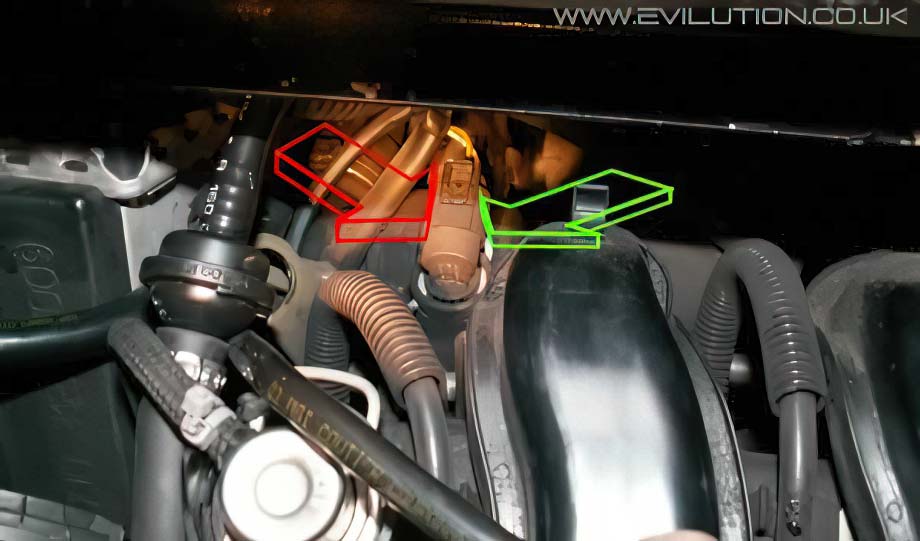

At the top of the engine at the back, there is a temperature sensor which is fitted in with a u clip. The red arrow shows the sensor, green arrow shows the clip.
Taking the clip out is easy, putting it back in isn’t as easy.
Place long nosed pliers or a screwdriver between the housing and the clip and lever the clip out.
It has been noted by some that it is a good idea to tie the clip to a part of the engine with string or fishing line as it has the ability to spring out and totally disappear during its removal and refitting. It saves the hassle of getting replacements.
Neil also recommends that you should be wary of the O ring that can come loose when you remove the sensor. The expelled coolant can push the O ring out and you’ll have a job finding it again.
The best way is to hold the clip in place, push the sensor into the hole and hold it in and use long nose pliers to lever the sprung clip back in place. Be careful that you don’t damage anything with your leverage.
