Roadster Fog Light Wiring

Mod Description
Key: E = Earth C4/8 = Connection plug 4, pin 8 Fuse* or F* = Direct connection fuse number Black Yellow = Wire colour Modules are labeled in the picture.
Mod Details
PremiumYes Difficulty Mod ID1251 Creditevilution For452 Roadster Linkhttps://www.evilution.co.uk/mod/roadster-fog-light-wiring.htm Copy to Clipboard

Roadster Front Fog Lights

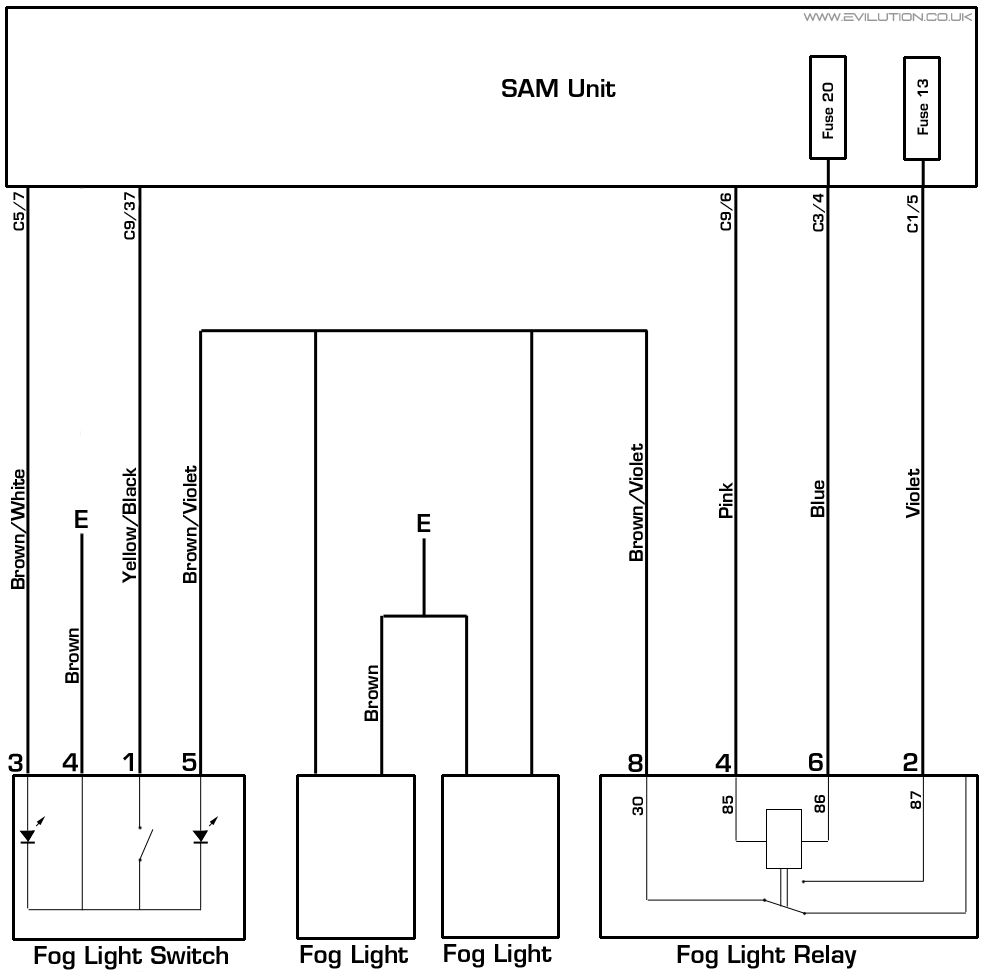

This shows the wiring colours, pin positions and connections between electronic modules.
