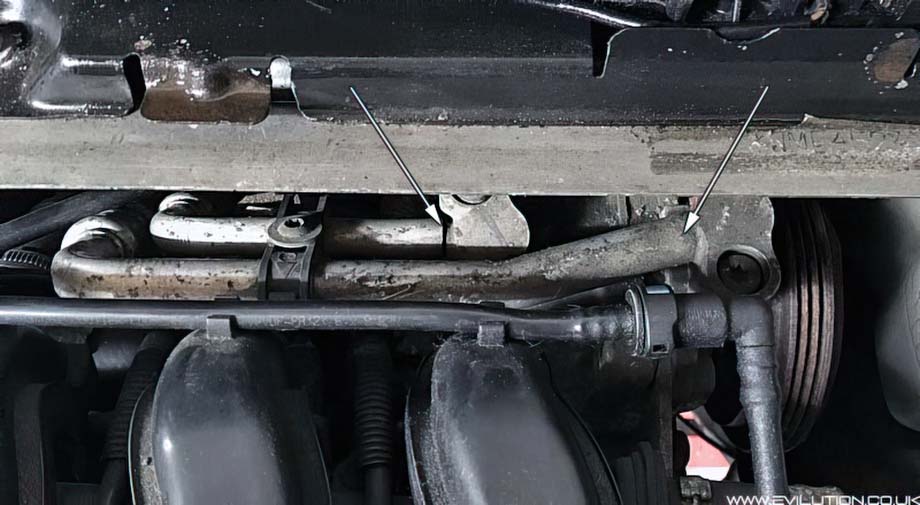

The Roadster has a nasty habit of snapping the air conditioning pipes. Smart took 2 attempt to sort this out, an inline clamp and redesigned hoses. The clamp helps a bit but as you can see, this car had the clamp but the pipe still snapped. The aluminium pipes generally snap where they connect to the main mounting blocks.
![](/wp-content/uploads/smartengine/aircon/acpipes/broken1.jpg)

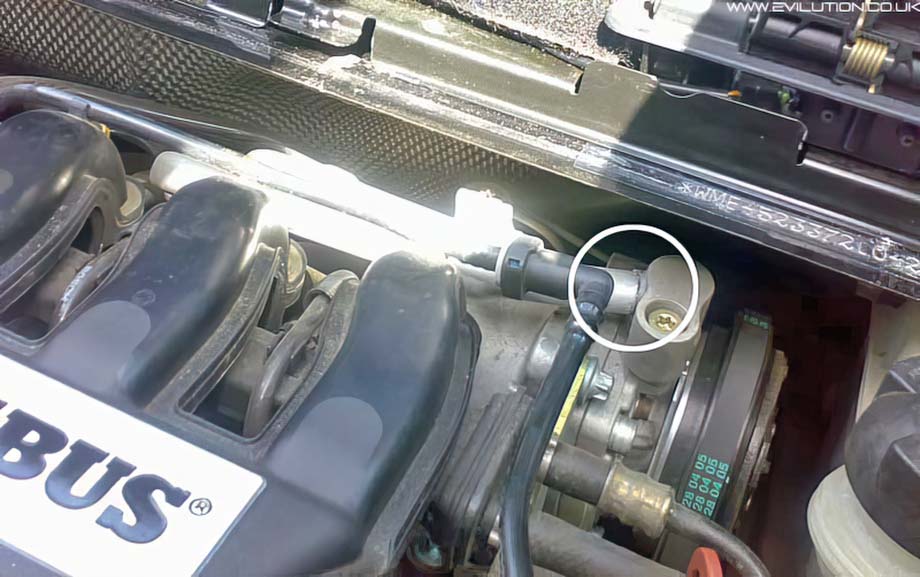

Although mine broke the thinner left hand pipe, it’s usually the thicker right hand pipe that fails.
![](/wp-content/uploads/smartengine/aircon/acpipes/normalbreak.jpg)

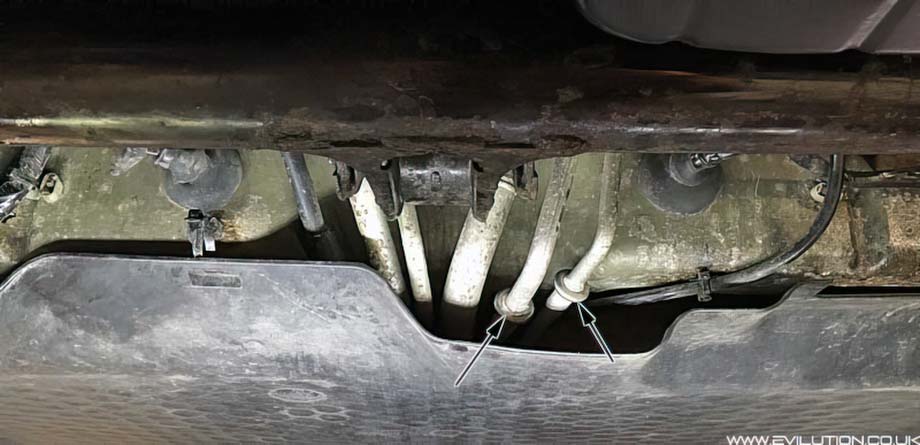

Unfortunately the pipes run down the back of the engine, so changing them is a bit of a job. With the car in the air, look between the undertray and the engine. You’ll see the other ends of the AC pipes.
![](/wp-content/uploads/smartengine/aircon/acpipes/broken2.jpg)

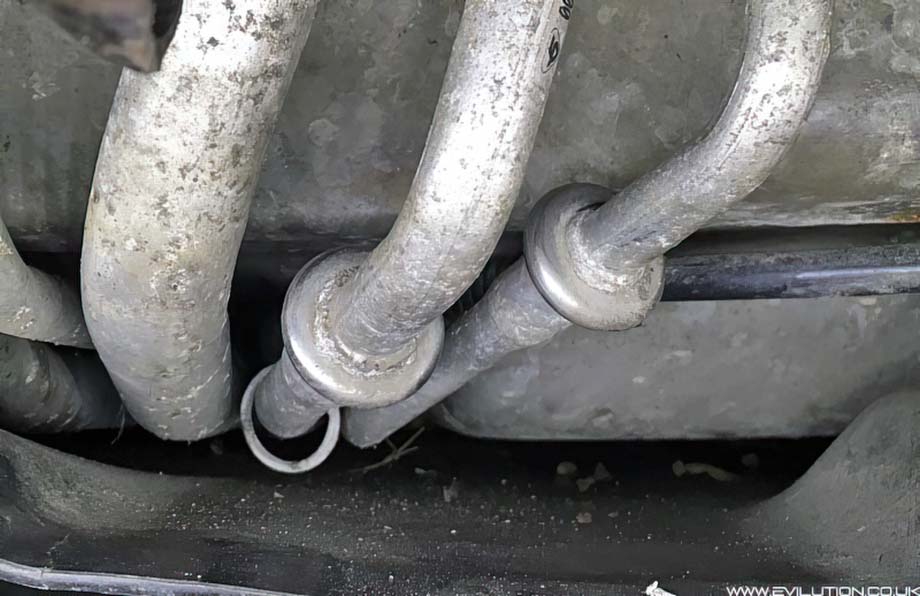

The pipe connections are called spring locks…
![](/wp-content/uploads/smartengine/aircon/acpipes/broken3.jpg)

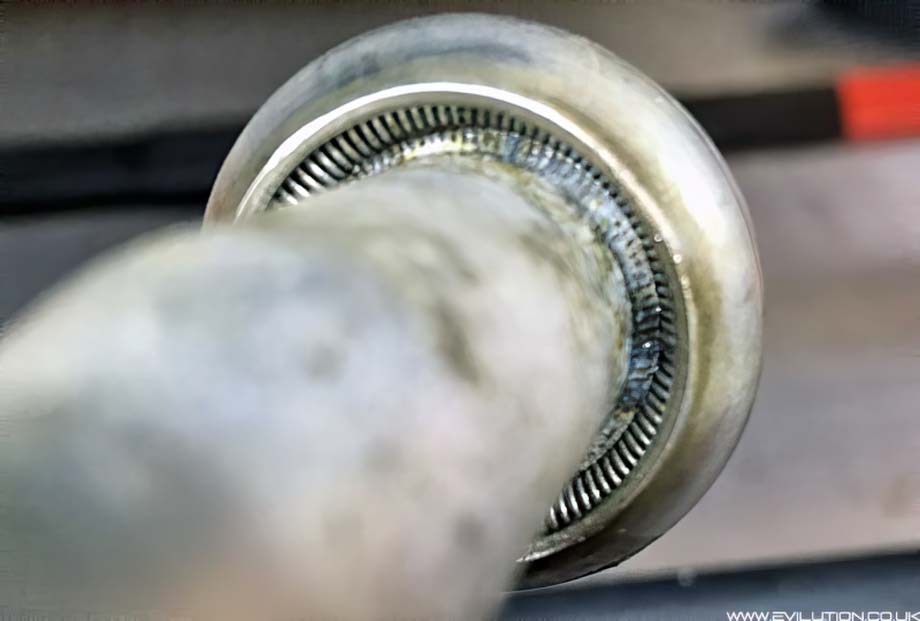

They are simple and clever but an absolute pain in the tits to disconnect.
![](/wp-content/uploads/smartengine/aircon/acpipes/broken4.jpg)

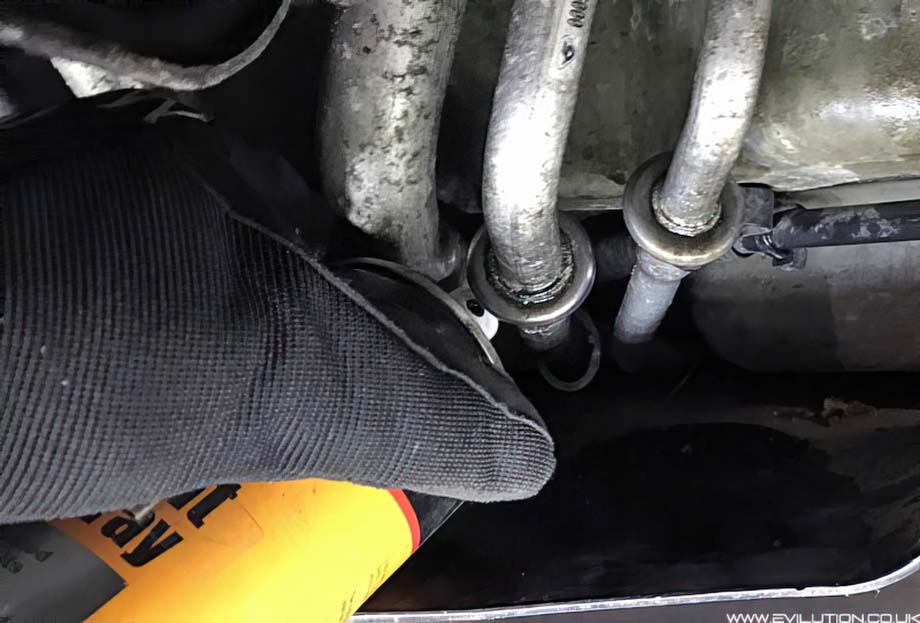

You’d do yourself a favour by spraying a bit of oil into it. It helps a bit when you use the disconnection tool.
![](/wp-content/uploads/smartengine/aircon/acpipes/broken5.jpg)
I bought these AC spring lock disconnection tools. They were on eBay and cheap.
![](/wp-content/uploads/smartengine/aircon/acpipes/broken6.jpg)
However, you only need 2 of them…
