Ignition Free Electric Windows

Mod Description

You can already buy this type of device for about £20 which is a bit of a rip off considering the value of the parts doesn't exceed a quid.

Mod Details

PremiumNo Difficulty Mod ID358 CreditEvilution Cost££1 - £2 For Linkhttps://www.evilution.co.uk/mod/ignition-free-electric-windows.htm Copy to Clipboard

It’s not something I have a problem with but it seems that a few do. Apparently it’s quite common to turn your car off to realise you have left the windows down. This means you have to turn the key back to 1 to raise the windows.

Fortwo 450 & Roadster 452

This project bypasses the original 30A fuse which is connected to a switched live. When the car is turned off, all power is taken from the fuse and the windows don’t work. Luckily on all 700cc and CDi smarts you have a bank of 9 spare places that can take a fuse. Some of them are switched and the others are a permanent live, we want permanent.

Make It

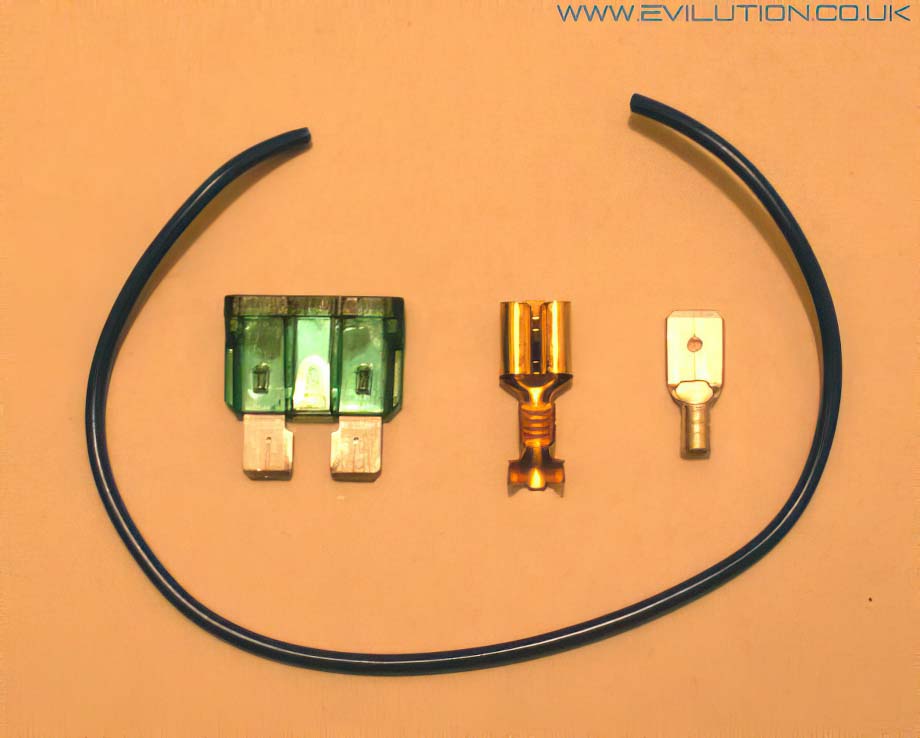

You will need:
spade connector
spade terminal
30A fuse
7 inches of 1.0mm wire

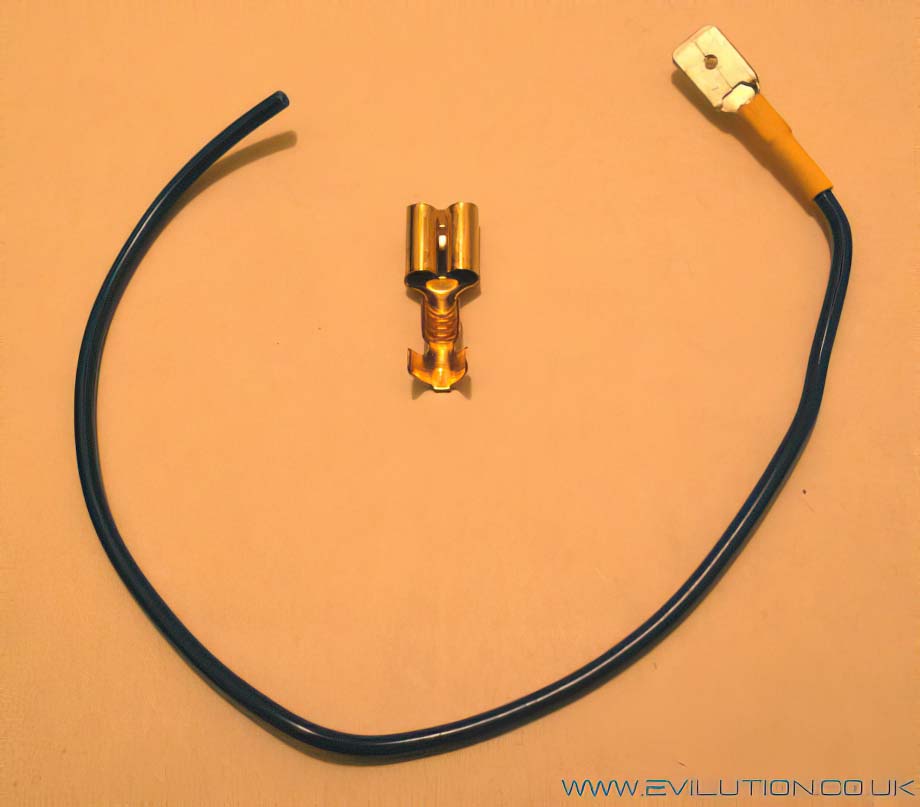

Strip a bit of the sheath from the cable and crimp or solder the spade connector to the wire, if you have any I recommend using heat shrink at the base of the connector.

Slide another bit of heat shrink on, strip a bit of sheath from the cable and crimp or solder the spade terminal to the other end. Heat both heat shrink tubes over the bases of each.

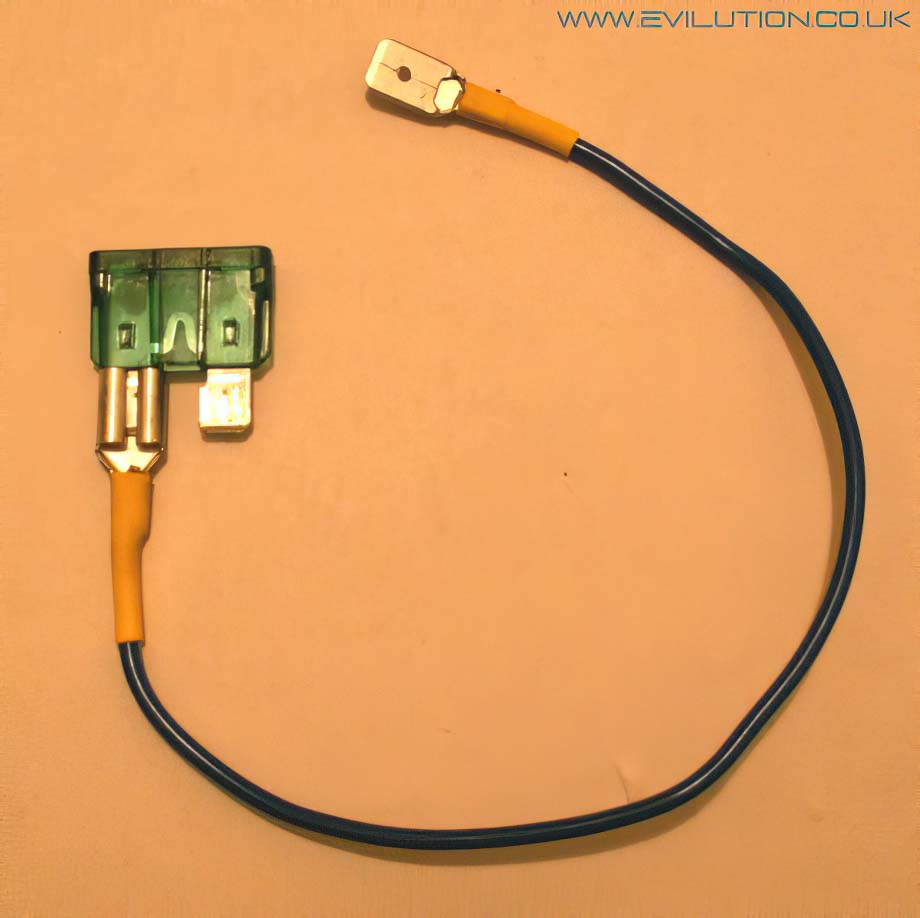

Remove the 30A fuse from position 4, the diagram can be seen here. Slide the terminal onto 1 leg of the fuse and the part is ready to be fitted.

Fit it

Find your SAM unit, it’s the fuse box in the footwell:
Left hand side for all for2s,
Driver’s side for all Roadsters,

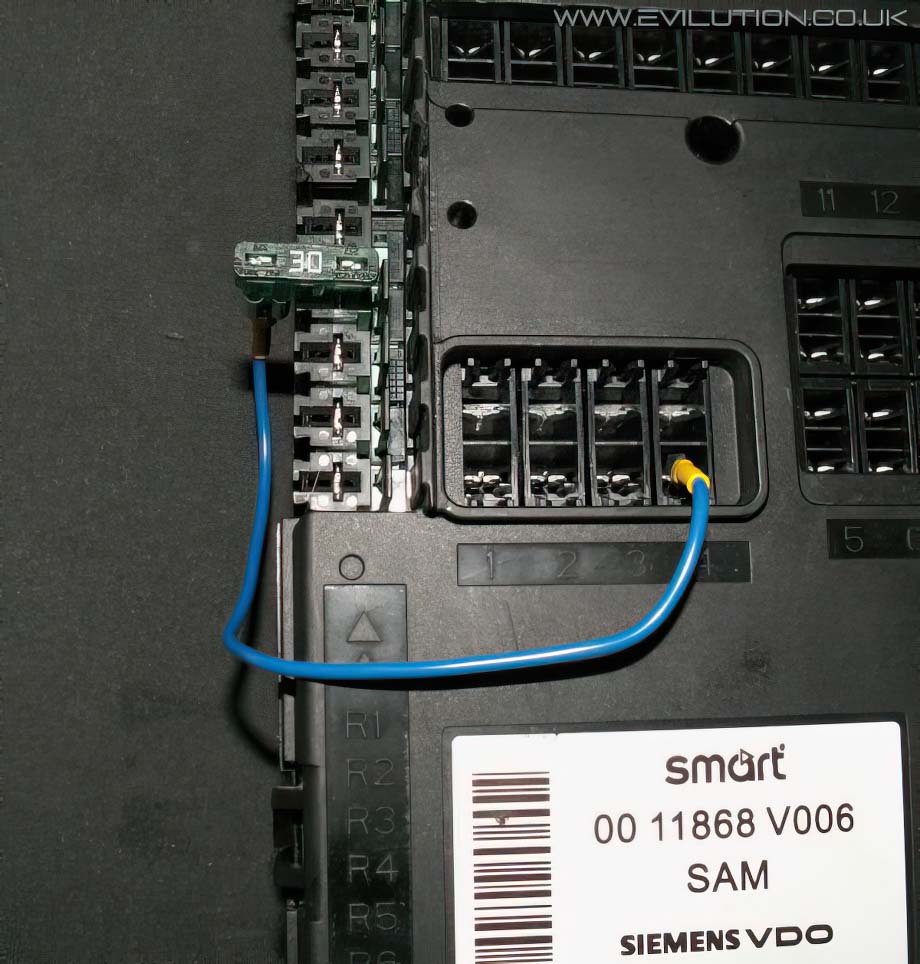

All the fuses are numbered, take a pair of pliers and remove fuse 4. Insert the spade connector into the furthest side of the hole (next to the number 4)

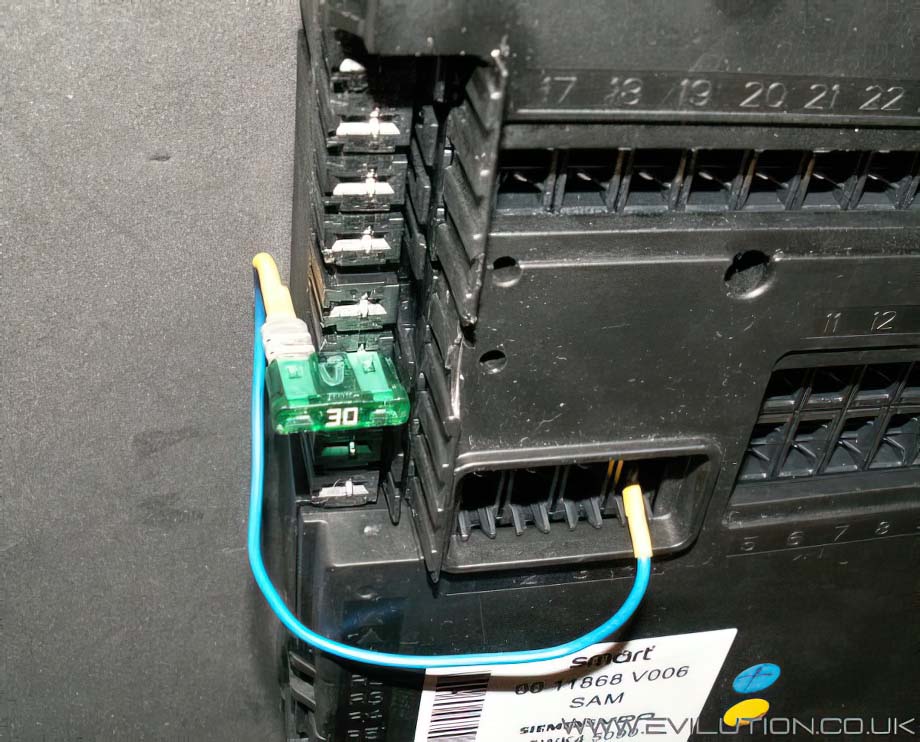

The fuse you removed should be plugged into the spade terminal of your wire. With that done you can now push the fuse into any one of the furthest five side holes. These are labelled R5 to R9. All 5 ports give a constant voltage.

With it all in place, sellotape the wire to the SAM unit to stop it getting snagged. Give it a test. Keep the ignition off and test the window buttons.

If it doesn’t work, you have done something wrong. Double check everything. If you plug it all in and the blower motor starts spinning, you have put the spade terminal in the wrong side, if nothing happens check the fuse and position.

Thanks to Sacki for pointing out the error in my fitting. It is now fixed.

600cc Smart Fortwo

Same idea applies but you will have to do the research as I have never done this on a 600. Firstly, the 600cc smart doesn’t have auxiliary fuse ports so you will have to use an existing one.

If you find a permanent live fuse you can use a bypass connector (sometimes called a bypass fuse).

You then just have to remove fuse 24 and place it in the bypass connector. Attach a spade connector to the trailing wire and push it into the place where fuse 24 came from.

Fortwo 451

Thanks to Ed Messner for letting me know that this works on the new smart 451.

The setup is almost exactly the same as before except it has a different fuse rating and connects to fuse 3. Again, you must match the fuse rating that is currently in place.
