Cylinder Head Bolts

Mod Description

It is important when refitting the cylinder head to get the bolts right

Mod Details

PremiumNo Difficulty Mod ID623 CreditVarious For Linkhttps://www.evilution.co.uk/mod/cylinder-head-bolts.htm Copy to Clipboard

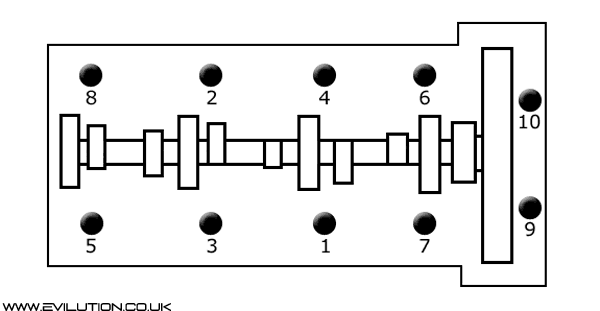

Cylinder Head Bolt Layout

Bolts 1 To 8

Important: You should always use new bolts.

700cc Petrol Engine Bolts 1 to 8

600cc Petrol Engine Bolts 1 to 8

800cc 450 Diesel Engine Bolts 1 to 8

800cc 451 Diesel Engine Bolts 1 to 8

999cc 451 Petrol Engine Bolts 1 to 8

Complete all the stages on bolts 1 to 8 before tightening 9 and 10 to the following figures.

Bolts 9 And 10

27Nm

Thanks to Tolsen and Chris for the info. Smart, can you please stop changing these values!
