454 Forfour Inspection Cover

Mod Details
PremiumNo Difficulty Mod ID1257 Creditevilution For454 Forfour Linkhttps://www.evilution.co.uk/mod/454-forfour-inspection-cover.htm Copy to Clipboard

The original Forfour had quite a small engine opening so things like changing the air filter would be tricky. Thankfully, they realised this and made it so the panel at the back of the engine could be removed. This gives you access to more of the engine, the air filter and the wipers.

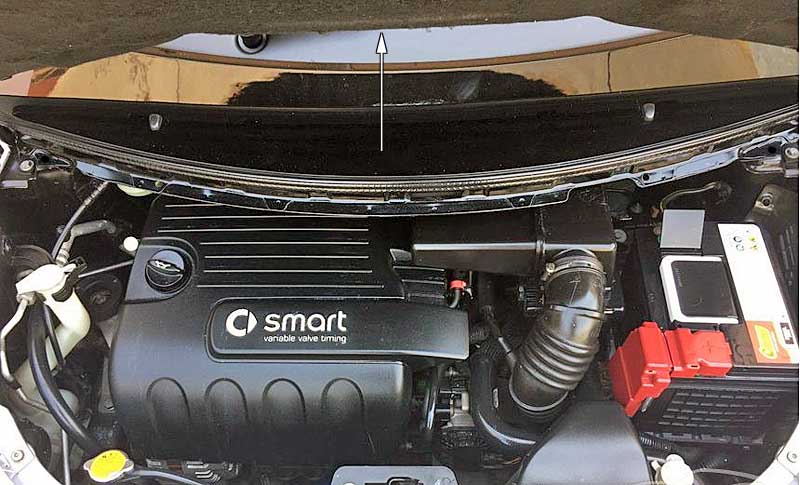

Open the bonnet and remove the 10mm bolt from each side of the access panel (arrowed below).

Next to the left hand bolt that you just removed, you’ll see the windscreen washer pipe. The pipe has a quick disconnect built in. Pull the pipe to disconnect it. The access panel can now be pulled backwards, in the direction of the windscreen to remove it.

When you replace it, you will see a white clip on each side that the panel slides into.
