453 Relay Layout

Mod Details
PremiumYes Difficulty Mod ID1446 Creditevilution For453 Fortwo/Forfour Linkhttps://www.evilution.co.uk/mod/453-relay-layout.htm Copy to Clipboard

Relay Layout

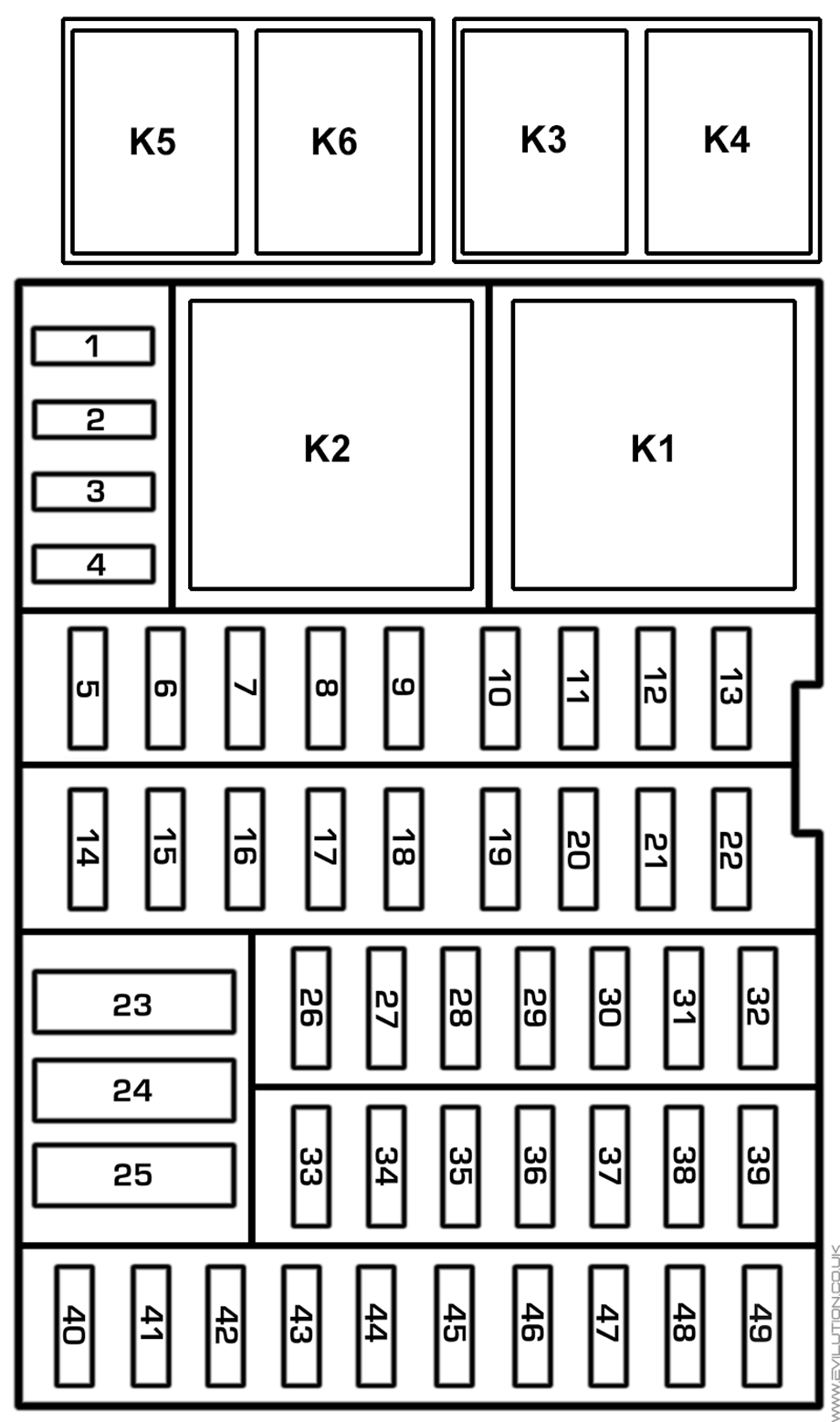

Main Fuse Box (Behind Dashboard) F2

Relay Number Function Specification
K1 Heated rear window & mirrors (G Cartier) 20 241 077
35 Amp max
K2 Electric windows (G Cartier) 20 241 077
35 Amp max
K3 Sliding roof power Not sure, should be the same as K4
I don’t have a cabrio
K4 Headlights (TE) V23074-A1601-X80
(Renault) 8200587114
30 Amp max
K5 Starter (TE) V23074-A1201-X93
(Renault) 8200900820
30 Amp max
K6 Alarm Horn (TE) V23074-A1201-X93
(Renault) 8200900820
30 Amp max

The electric (ED/EQ) 453 can also have a relay for a heated steering wheel.

Front Fuse Box (Under Bonnet) F1

Item Function Specification
Relay K1 Fan



Rear Fuse Box (Behind Offside Boot Panel) F11

Relay Number Function Specification
K1 Engine (G Cartier) 20 241 077
35 Amp
K2 Engine Fan (Renault) 8200900820
(TE) V23074-A1201-X93
30 Amp
K3 Ignition Coil & Fuel Pump (Renault) 8200900820
(TE) V23074-A1201-X93
30 Amp

Fuse List

Fuses can be found here, click.
