Linkhttps://www.evilution.co.uk/mod/453-electric-drive-fuses.htm Copy to ClipboardW453 (Forfour) & C453 (Fortwo) Electric Drive ED & EQ

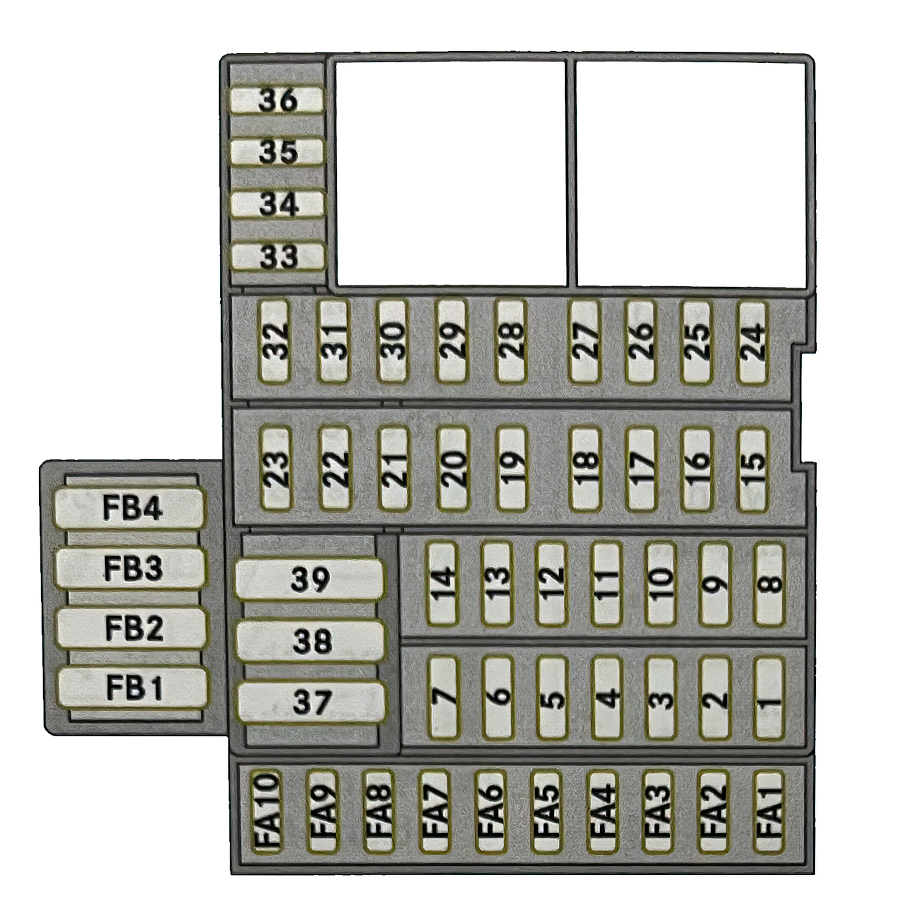

Main Fuse Box F2
Thanks to Roy Y for the above photo.
| Fuse Number | Amp Rating | Wire Colour | |
| 1 | |||
| 2 | Power Windows | 25A | Clear |
| 3 | Electric Mirrors | 5A | Orange |
| 4 | Radio Amplifier | 20A | Yellow |
| 5 | Daytime Running Lights, Headlights, Front Fog Lamps | 25A | Clear |
| 6 | Daytime running lamps, left; licence plate lighting, tail lamps | 25A | Clear |
| 7 | Alarm system, horn | 15A | Blue |
| 8 | Central control unit, audio system | 5A | Orange |
| 9 | Electric motor control unit | 5A | Orange |
| 10 | Horn | 15A | Blue |
| 11 | Rear window heating | 30A | Green |
| 12 | 12 V socket / cigarette lighter | 15A | Blue |
| 13 | |||
| 14 | Audio system, media system, media system connect | 20A | Yellow |
| 15 | Power steering control unit | 5A | Orange |
| 16 | Airbag | 5A | Orange |
| 17 | Folding roof control unit (not for cabrio), headlamp range control, cruise control, limiter, parking assistance systems, emergency braking system, interior rearview mirror, seat heating | 15A | Blue |
| 18 | Brake lamps | 10A | Red |
| 19 | Electrical outside mirrors | 5A | Orange |
| 20 | Brake control system | 3A | Pink |
| 21 | Tailgate lamp, roof lighting, roof opening, seat belt warning, sound generator, rain/light sensor | 10A | Red |
| 22 | Steering wheel angle sensor | 5A | Orange |
| 23 | Reversing lamp, rear window wiper, windscreen wiper | 15A | Blue |
| 24 | Central control unit | 15A | Blue |
| 25 | Light control unit | 5A | Orange |
| 26 | Turn signal | 15A | Blue |
| 27 | Central locking system | 20A | Yellow |
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | Instrument cluster | 10A | Red |
| 32 | Telematic control unit, charge communications module, service box (ready-to), media system, media system connect | 15A | Blue |
| 33 | Light control unit | 5A | Orange |
| 34 | Light switch | 5A | Orange |
| 35 | Window lifter (without automatic reversing function) | 25A or 30A | Clear or Green |
| 36 | |||
| 37 | Windscreen wipers | 30A | Green |
| 38 | High-voltage battery | 5A | Orange |
| 39 | Cooling fan | 40A | Orange |
| FA10 | Steering wheel heating | 5A | Orange |
| FA9 | Rear seat heating (only forfour) | 15A | Blue |
| FA8 | Driver/front passenger seat heating | 25A | Clear |
| FA7 | |||
| FA6 | |||
| FA5 | |||
| FA4 | Folding roof (not for all models) | 15A | Blue |
| FA3 | |||
| FA2 | HV power supply control unit | 10A | Red |
| FA1 | Air conditioning, battery/electric motor cooling, selector lever, HV crash sensor, rear window heater | 10A | Red |
| FB4 | |||
| FB3 | |||
| FB2 | Soft top (only cabrio) | 20A | Yellow |
| FB1 | Soft top (only cabrio) | 20A | Yellow |
Front Fuse Box (Under Bonnet) F1
Electric Drive
| Item | Function | Specification |
| Fuse 1 | Heated Rear Window | 30A |
| Fuse 2 | Brake Booster Vacuum Pump Controller | 30A |
| Fuse 3 | ESP Traction Control | 25A |
| Fuse 4 | Fortwo Main Electrical | 25A |
| Fuse 4 | Forfour Sliding Roof | 40A |
| Fuse 5 | Power For Rear Fuse Box F11 | 25A |
| Fuse 6 | Power For Internal Fuse Box F2 | 70A |
| Fuse 7 | Fan Motor | 40A |
| Fuse 8 | Spare | |
| Fuse 9 | Battery Heater | 60A |
Rear Fuse Box (Behind Offside Boot Panel) F11
Electric Drive
| Fuse Number | Function | Specification |
| 1 | Spare | |
| 2 | Transmission Mode Sensor | 15A |
| 3 | Electric Dive Motor Fan | 40A |
| 4 | Battery Coolant Pump Relay | 30A |
| 5 | Battery Coolant Pump | 15A |
| 6 | Battery Management System | 5A |
| 7 | Electronics Control Unit | 20A |
| 8 | Circuit 87 | 15A |
Battery Clamp Fuses (Positive Battery Connection) F108
| Fuse Number | Function | Specification |
| 1 | Feeds Fuse 3A & 3B And Main Cable To Front Fuse Box F1 | 200 Amp |
| 2A | Main Fuse Box F2 | 70 Amp |
| 2B | Power Steering Controller | 60 Amp |
| 3A | Main Fuse Box F2 & Ignition Lock | 70 Amp |
| 3B | ESP Traction Control Unit | 50 Amp |
