451 Rear Light Wiring Connections
RHD Coupe & Cabrio
Left Hand Light Unit
| Pin Number |
Wire Colours |
Light Type |
| 1 |
Black/Red |
Brake |
| 2 |
Brown/Grey |
Tail |
| 3 |
Black/White |
Indicator |
| 4 |
Yellow/Red |
Reverse |
| 5 |
Brown |
Earth |
| 6 |
N/C |
N/C |
Right Hand Light Unit
| Pin Number |
Wire Colours |
Light Type |
| 1 |
N/C |
N/C |
| 2 |
Brown |
Earth |
| 3 |
Yellow/Red |
Fog |
| 4 |
Black/Green |
Indicator |
| 5 |
Grey/Green |
Tail |
| 6 |
Black/Red |
Brake |
LHD Coupe & CabrioLeft Hand Light Unit
| Pin Number |
Wire Colours |
Light Type |
| 1 |
Black/Red |
Brake |
| 2 |
Brown/Grey |
Tail |
| 3 |
Black/White |
Indicator |
| 4 |
Yellow/Red |
Fog |
| 5 |
Brown |
Earth |
| 6 |
N/C |
N/C |
Right Hand Light Unit
| Pin Number |
Wire Colours |
Light Type |
| 1 |
N/C |
N/C |
| 2 |
Brown |
Earth |
| 3 |
Yellow/Red |
Reverse |
| 4 |
Black/Green |
Indicator |
| 5 |
Grey/Green |
Tail |
| 6 |
Black/Red |
Brake |
These are Euro wiring pin outs only.
Thanks to

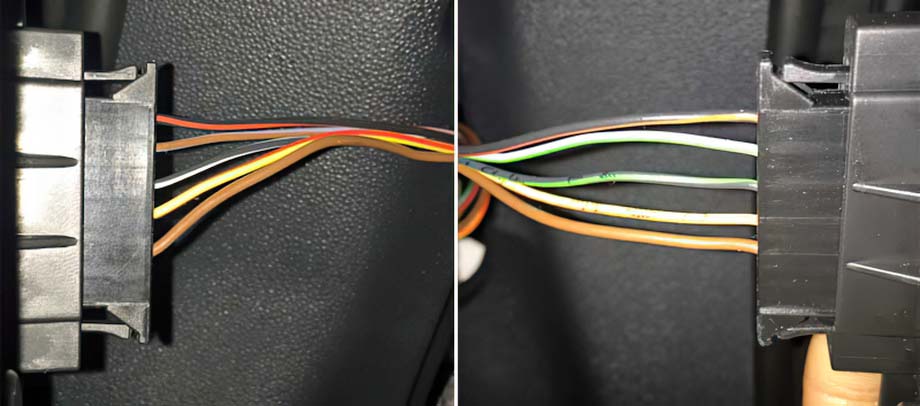

Adam for the photo.
