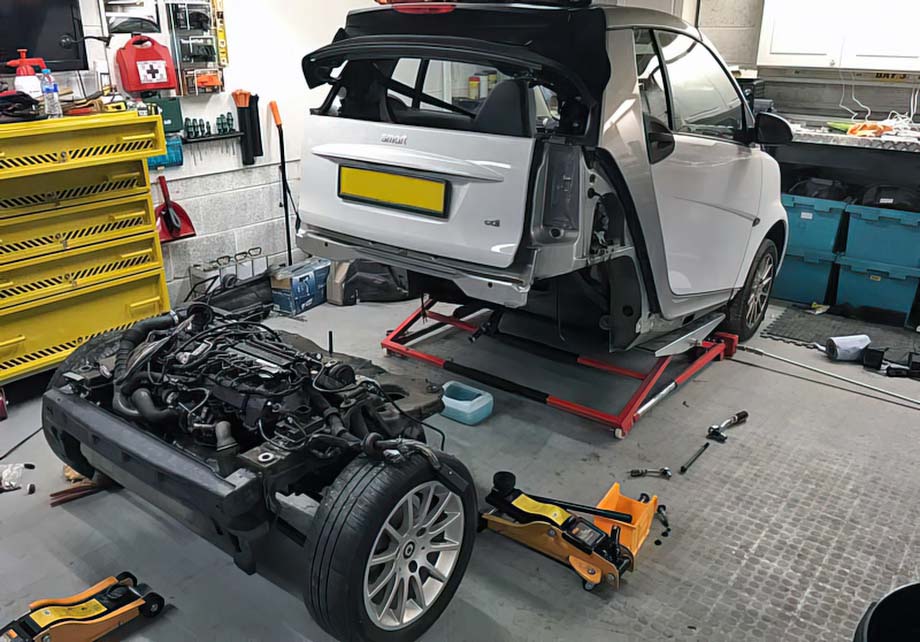

In the history of evilution, I had never had to remove an engine. Just my luck I had to start on the hardest one. Even then, I wouldn’t go as far as saying it was hard, just time consuming, awkward and daunting. Including taking photos and notes, I achieved this in about 3 hours. I was in no rush and didn’t have a guide.
![](/wp-content/uploads/smartengine/removal/54cdiremove/54out.jpg)
DISCONNECT THE BATTERY EARTH LEAD.

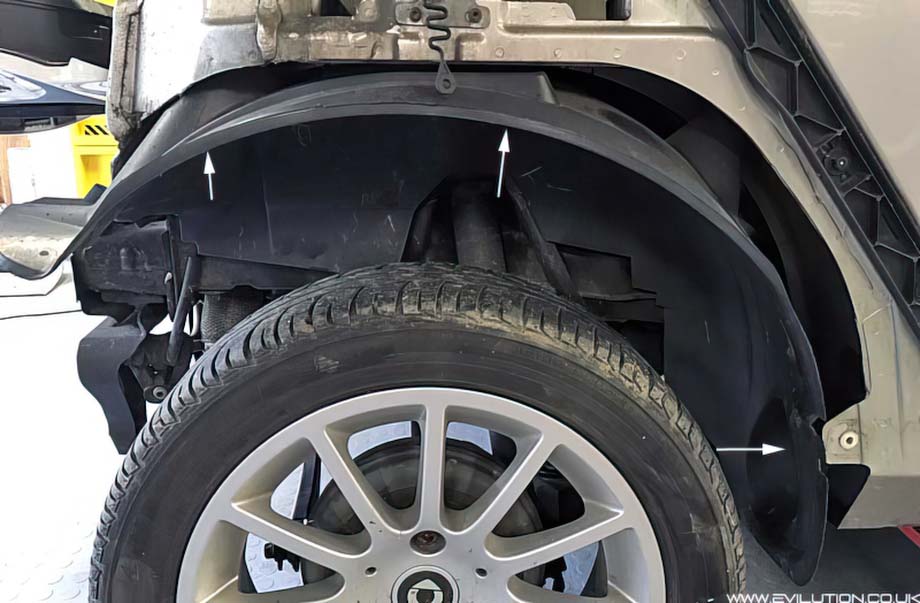

Remove the rear panels, jack the car up and remove the 3x 10mm plastic nuts in the arch liners.
![](/wp-content/uploads/smartengine/removal/54cdiremove/engineremove1.jpg)

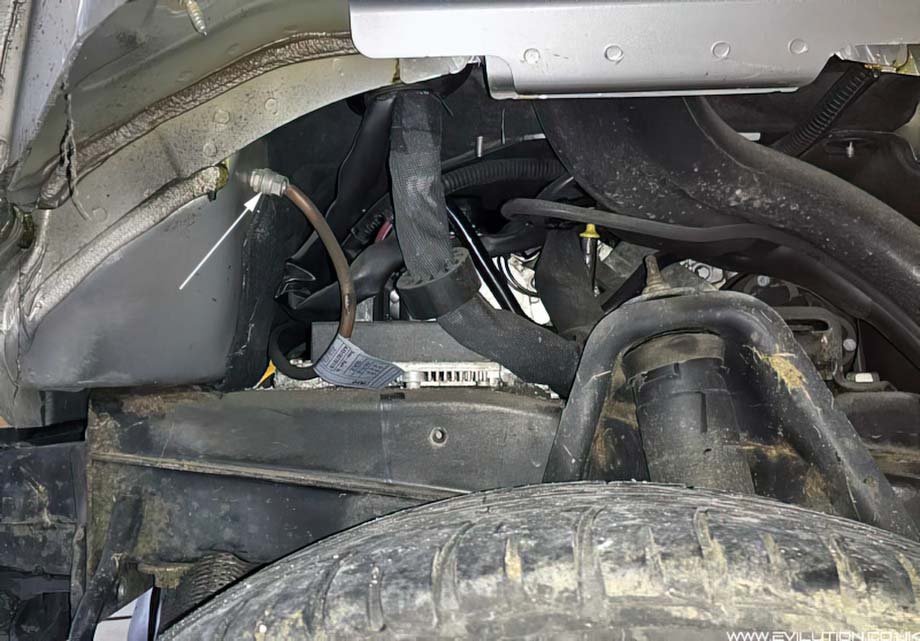

Pull the arch liners out to reveal the engine to body earth. Remove the 10mm nut and disconnect the earth lead.
![](/wp-content/uploads/smartengine/removal/54cdiremove/engineremove2.jpg)

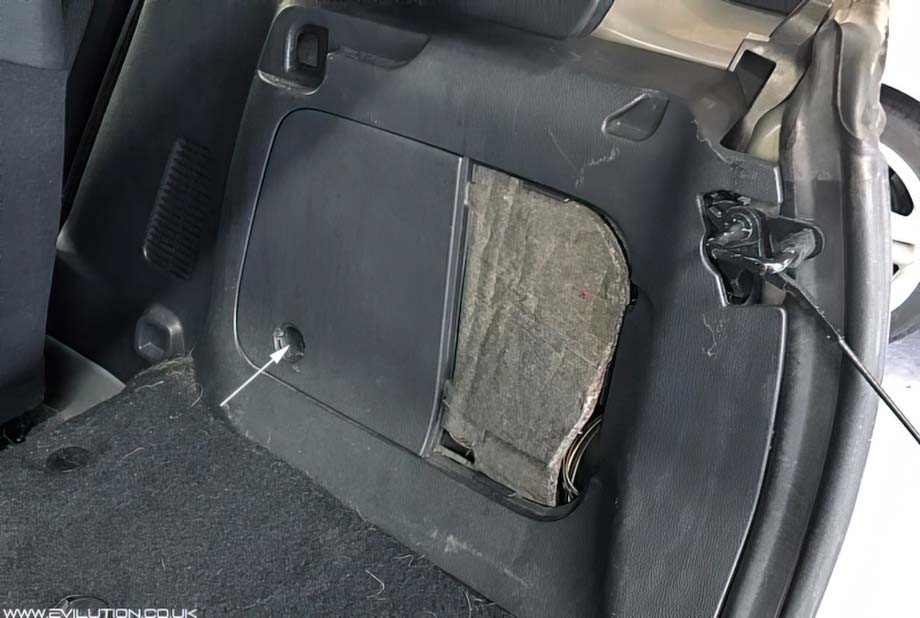

Remove the inside boot cover by taking out the Torx screw and pulling the plastic cover off of the car.
![](/wp-content/uploads/smartengine/removal/54cdiremove/engineremove3.jpg)

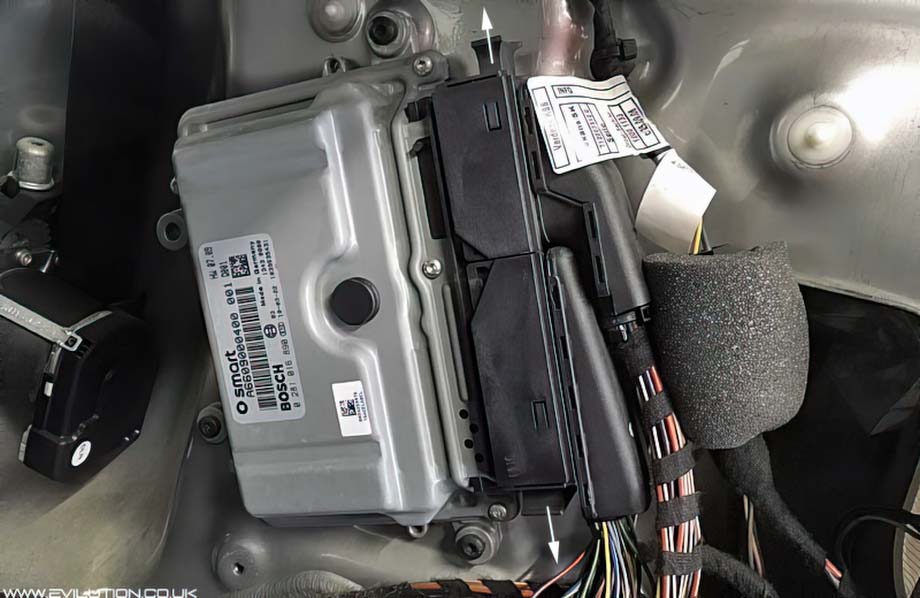

This reveals the ECU. There are sliders on the electrical connectors. Slide the top one up and the bottom one down.
![](/wp-content/uploads/smartengine/removal/54cdiremove/engineremove4.jpg)

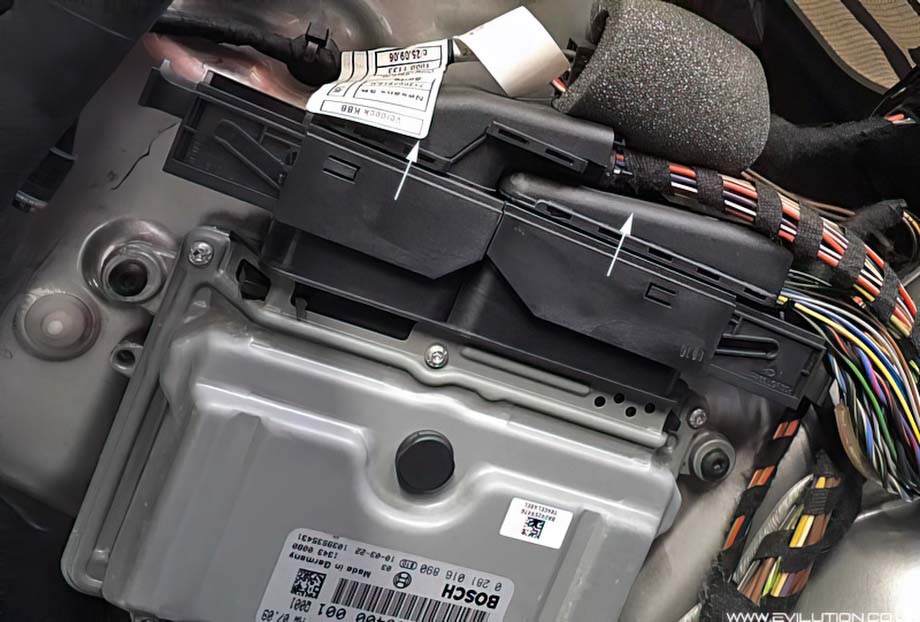

Then the connections will pull out of the ECU.
![](/wp-content/uploads/smartengine/removal/54cdiremove/engineremove5.jpg)

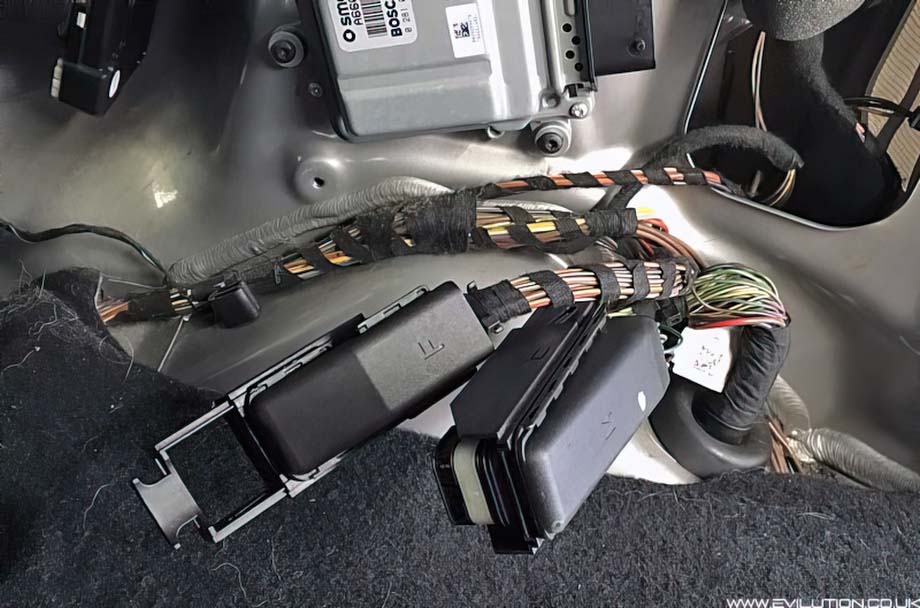

The top and bottom connectors are separate looms. You only need the bottom one.
![](/wp-content/uploads/smartengine/removal/54cdiremove/engineremove6.jpg)

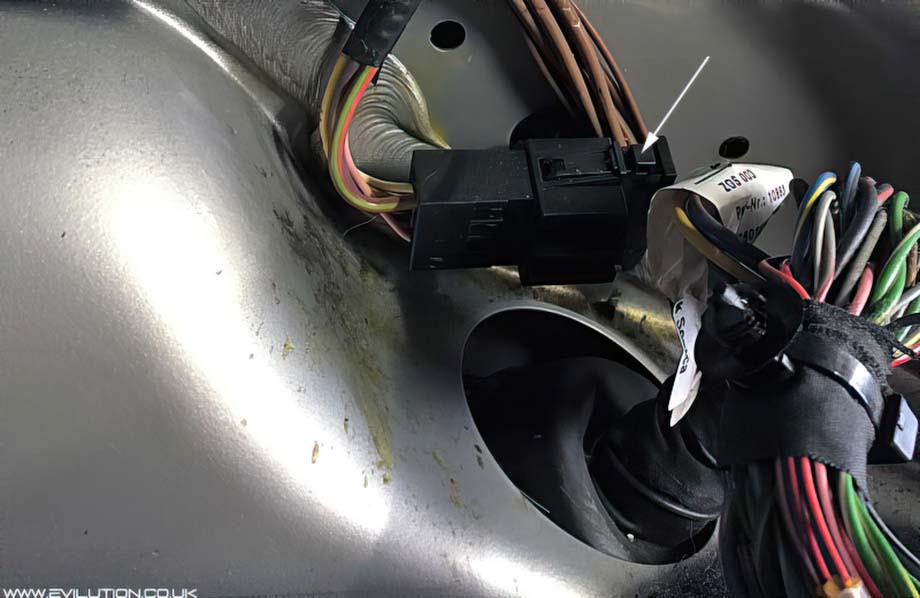

At the base of the loom is another connector to disconnect.
