451 Boot Side Removal

Mod Description

How to remove the interior side panel from the boot of a 451.

Mod Details

PremiumNo Difficulty Mod ID178 CreditEvilution For Linkhttps://www.evilution.co.uk/mod/451-boot-side-removal.htm Copy to Clipboard

Removing The Left Cover

Remove the bulb service flap.

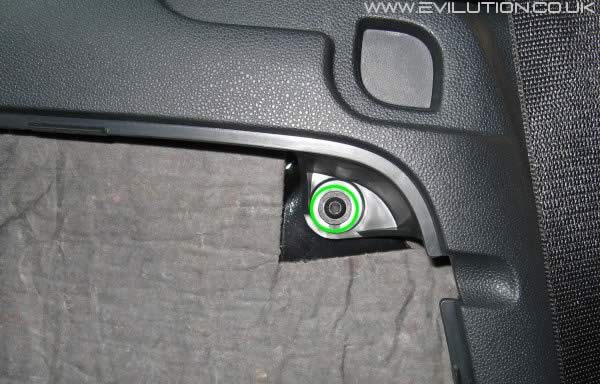

Use a Torx25 screwdriver to remove the screw located underneath.

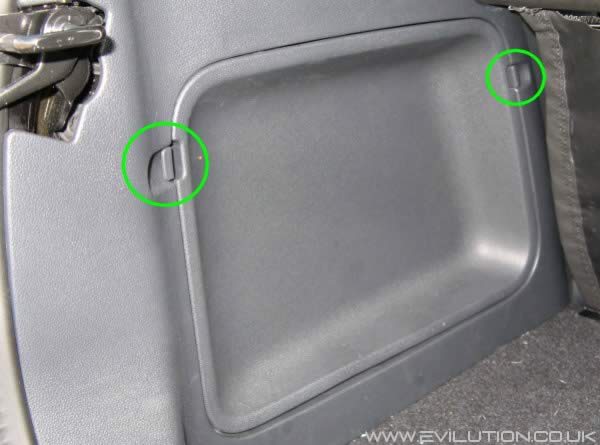

Pull the panel off, it is held on with press in clips.

Removing The Right Cover

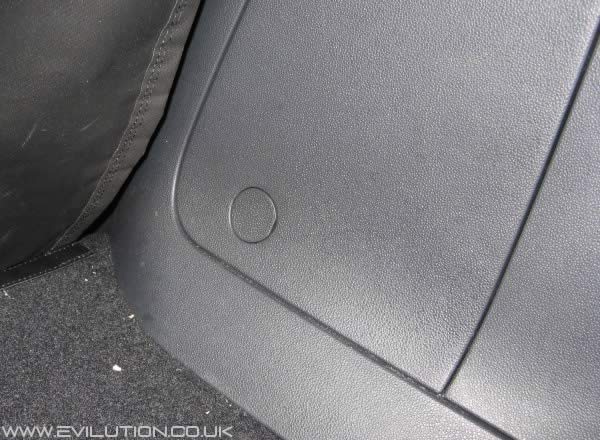

Lever out the small cap near the back of the panel.

Use a Torx25 screwdriver to remove the screw located underneath.
Pull the panel off, it is held on with press in clips.

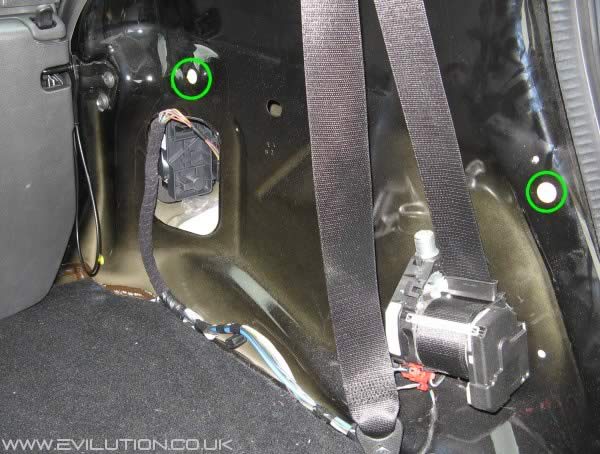

On removal of the right panel you will find the ECU.
