Mod Description

If you have a split in the air conditioning radiator then you'll need to replace it

Mod Details

PremiumYes Difficulty Mod ID847 Creditevilution For Linkhttps://www.evilution.co.uk/mod/451-ac-radiator-removal.htm Copy to Clipboard

Warning

The AC system is full of high pressure gas. If you undo any connections it will get out. Many cars use R134-A gas (1,1,1,2-tetrafluoroethane) which is relatively non toxic but should be avoided where possible. However it is bad for the environment (if you care).

However…

…the fact you are replacing the radiator means in all likelihood the gas has already escaped.
To be on the safe side, perform this in a well ventilated area and have some tissue ready.

Removal

Remove the front panels and front frame.

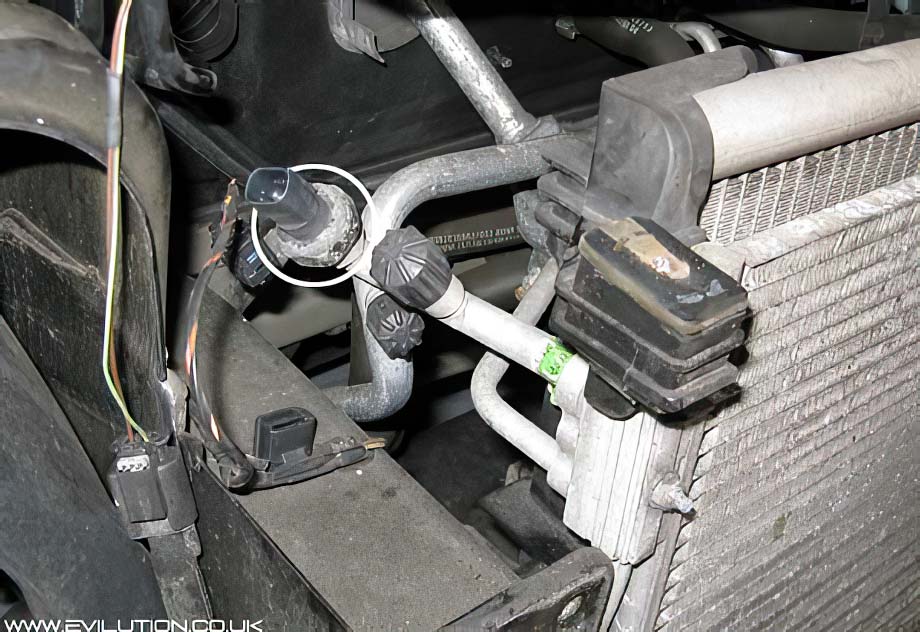

Locate the AC pressure sensor, place a spanner over it and give it a turn anticlockwise. If you hear hissing, move away until you hear it stop. It’s the pressure equalising. You may also get refrigerant oil dripping from the pipe so clean it up as it drips. Tighten the pressure sensor back in place.

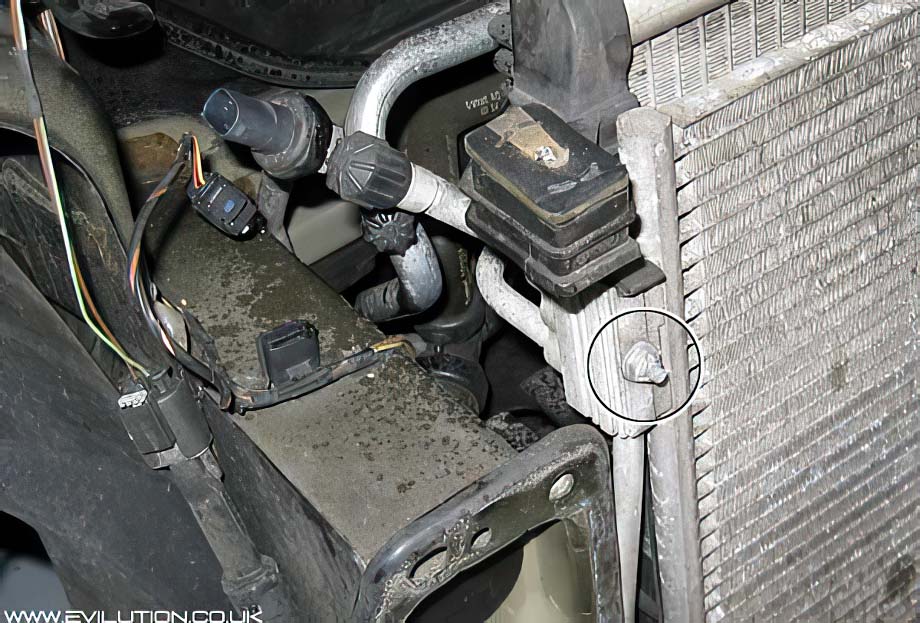

On the front of the radiator is a nut to remove, cirlced below.
