Linkhttps://www.evilution.co.uk/mod/450-leaks.htm Copy to ClipboardIt’s Not Just The Roadster That Leaks
Although it’s far less likely on the fortwo, even the cabrio variant leaks less than the fortwo coupe.
How Do You Discover Leaks
This is my favourite method, you can adapt it to suit most areas. Click here.
Wet Under The Front Carpets
Check all the door seals are ok, clean them and the mating faces.
Air conditioning drain fault
Cabin air intake drain fault
Windscreen seal fault

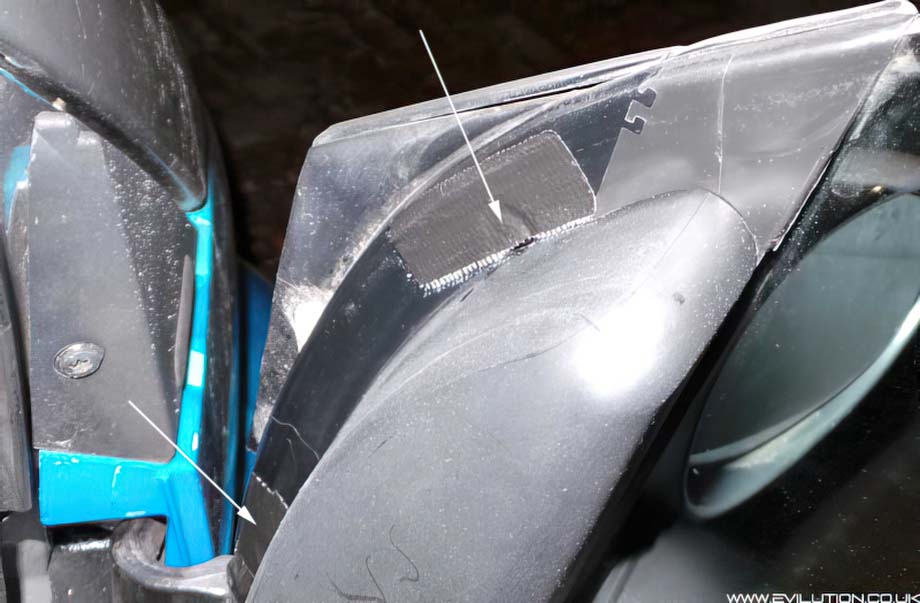

Door Mirror Trim Screws

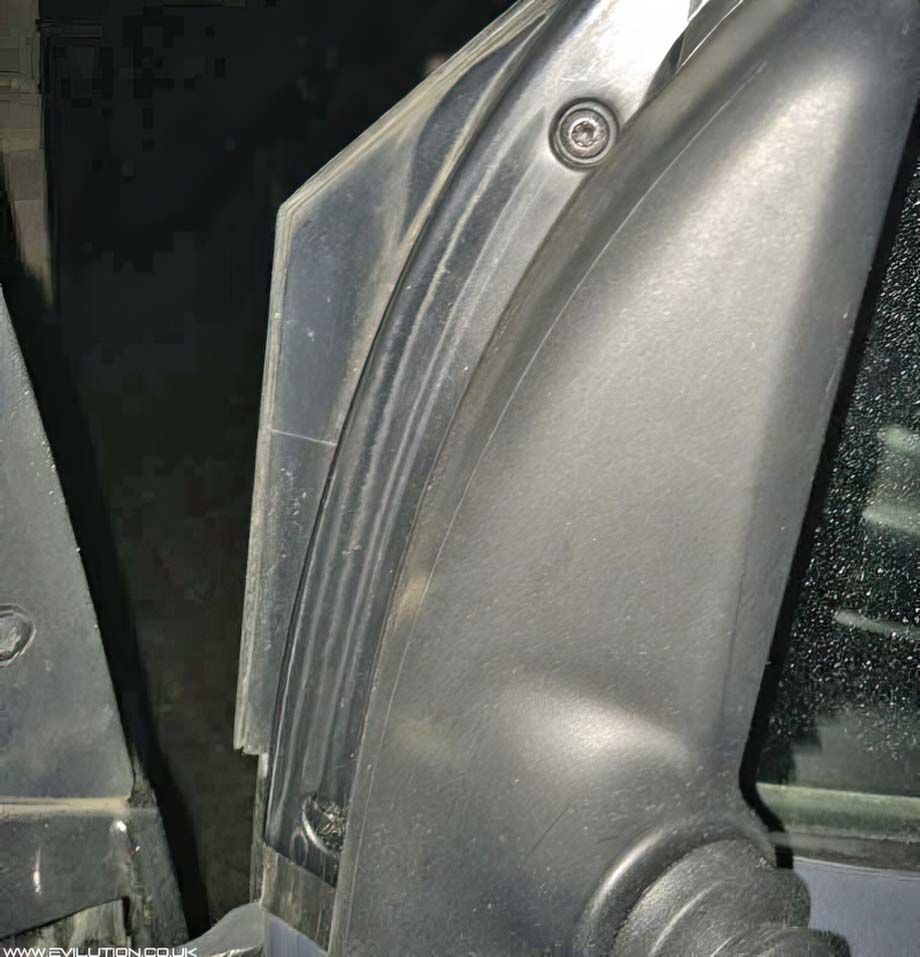

The interior mirror trim pieces are held in with 2 screws. (Thanks to Ricky B for this photo).
It’s fairly normal for there to be no adhesive patches over these holes which allows the water to flow around the seal, over the screw head and into the interior. The water then runs down the front leading edge of the door, over the lower door seal and under the carpet. So, try adding some duct tape over the screw holes.
Wet Under The Rear Carpets
Firstly remove the engine cover, check the seal all the way around, check for debris on the seal and where the seal touches the car and make sure it is refitted to the car correctly
Rear side window leaks
Rear screen wash pipe fault
Wet In The Centre Of The Car
Check all the door seals are ok, clean them and the mating faces.
Consider also that there may have been unusual circumstances that caused a leak near the front but so much time may have elapsed until you found it that the water moved to the lowest point (under and behind the seats) and the front part of the carpet had time to dry.
There is a large grommet coming through the bulkhead that carries the main wiring loom from the engine into the cabin. This could be misaligned or damaged and allowing water in.
The rear screen squirter is fed from the front water tank. The hose runs inside the car so there is always a possibility that the hose could be split. As most of the pipe is below the water tank you could get a slow syphoning effect which would very slowly empty the tank into the car.
