Mod Description
Changing the 509T bulbs in the Speedo, LCD and Pods is an easy job, the next step is to replace the SMD (surface mounted device) LEDs located throughout the car. this will match the colours to the speedo and will look much better overall.Mod Details
PremiumYes Difficulty
Mod ID290
CreditEvilution
For
Linkhttps://www.evilution.co.uk/mod/450-fortwo-smd-leds.htm Copy to ClipboardThis page will show you how to solder in new LEDs to change the illumination colour of the following:

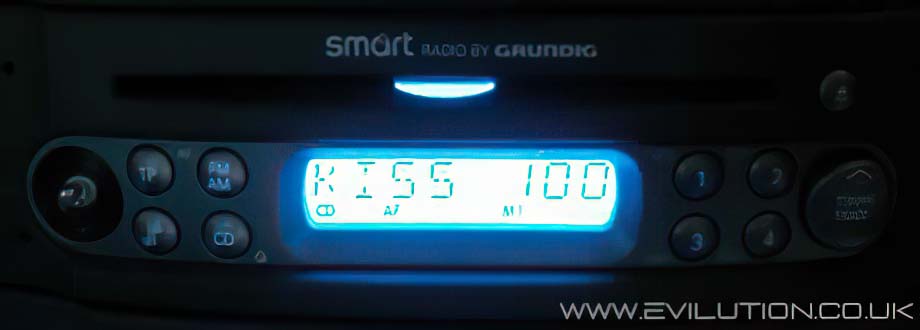

Grundig stereos
Dash top switches
Lower dash buttons
By far the best part of this mod is quite a few people won’t have the balls to actually do it. The other bonus is that people just don’t know what the LED codes are, they don’t have a size so you have to find out the full info on them before you can even start searching for suppliers.Each of the SMD LEDS on the safety island (shown below) are PLCC-2 (TANTAL/B) and they are a very common fitment and should cost less than 30p each.
This is where I got mine from, clicky.
I’m Too Scared To Do This, Who Can I Pay?
CrazyLeds can change your SMD LEDs for you. Just ask them.

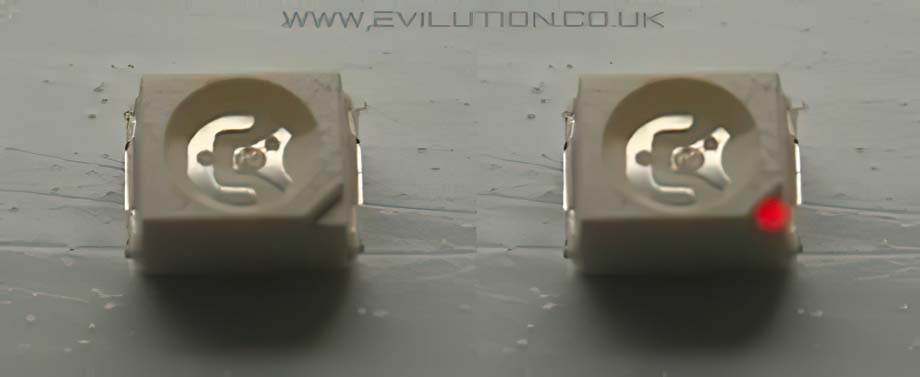

SMD Orientation
Like most LEDs, they only work one way around. Standard LEDs are marked with a single flat edge and 1 shorter leg. The SMD LEDs have a recessed triangle in the corner, these are marked as red in the pictures.
