450 Fortwo Rear Bearings

Mod Description
If you fit larger alloys there is a good chance that after a few years one or more of your wheel bearings will develop a squeak. The squeak will get worse and eventually the whole thing will seize.
Mod Details
PremiumYes Difficulty Mod ID457 Creditevilution For450 Fortwo Linkhttps://www.evilution.co.uk/mod/450-fortwo-rear-bearings.htm Copy to Clipboard

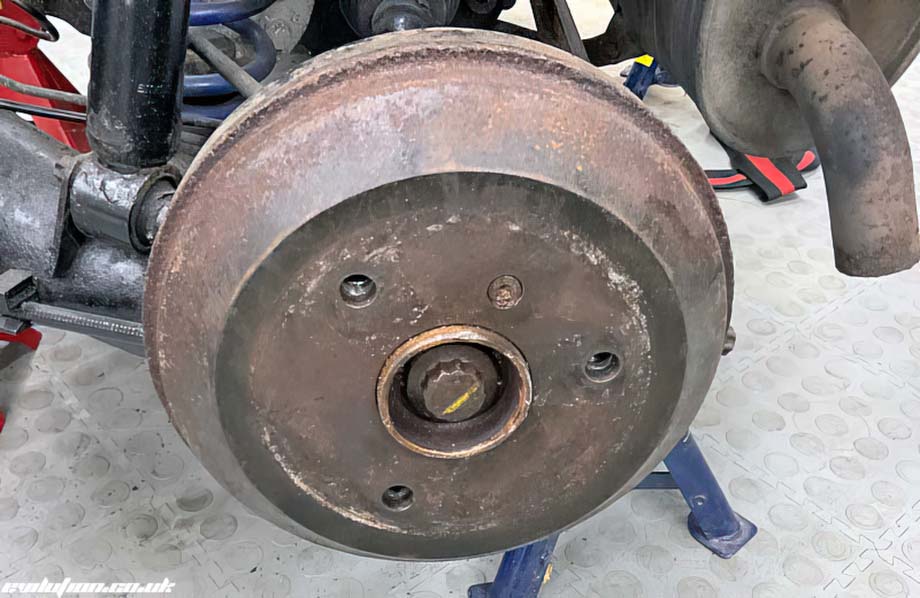

Loosen the wheel bolts, jack the car up and remove the wheel.

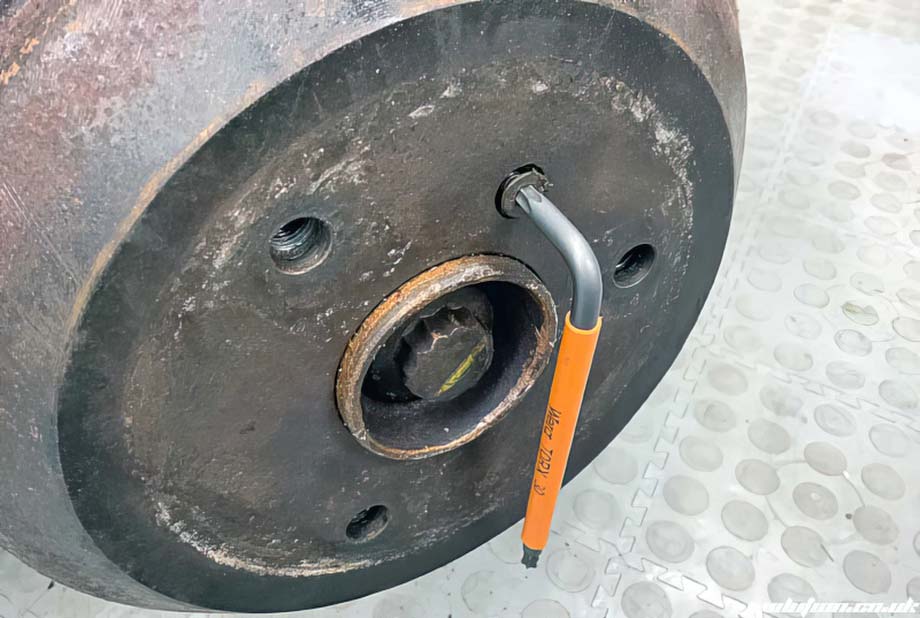

Use a Torx30 to remove the drum fixing.

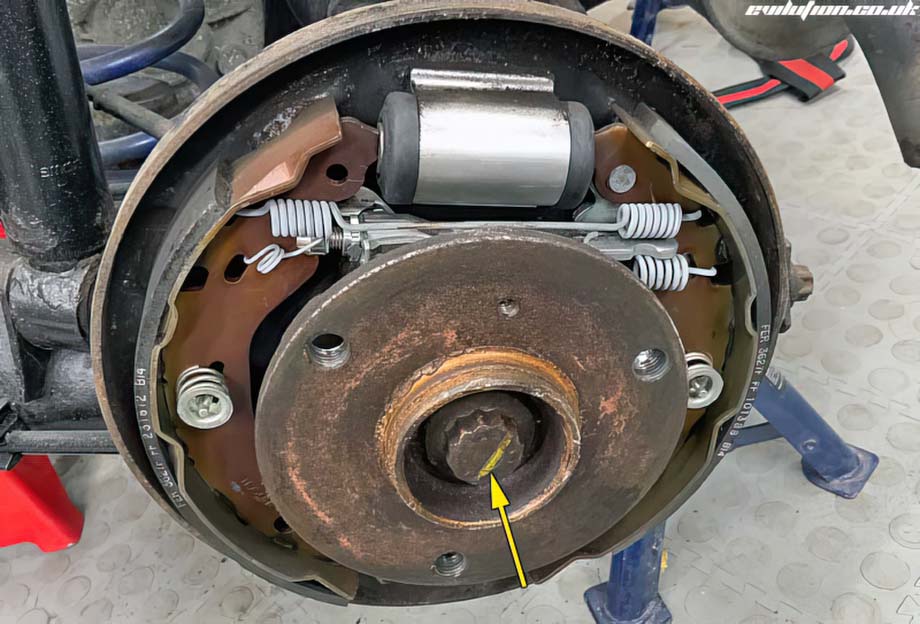

Release the handbrake and pull the drum from the hub. With the car in reverse the driveshafts are locked. Use a 21mm socket to remove the centre bolt.

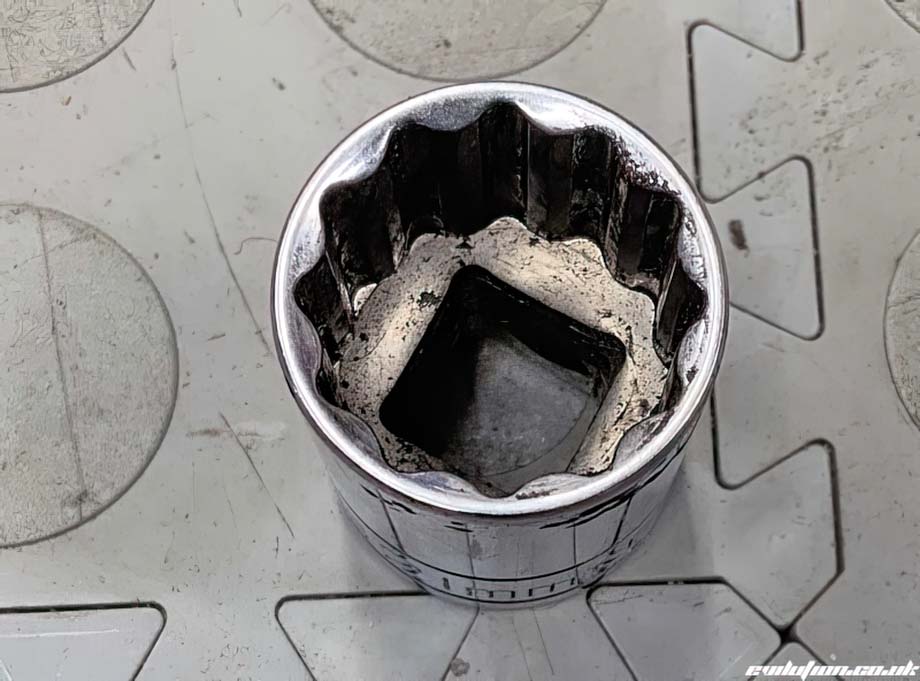

You’ll need a 12 point socket.

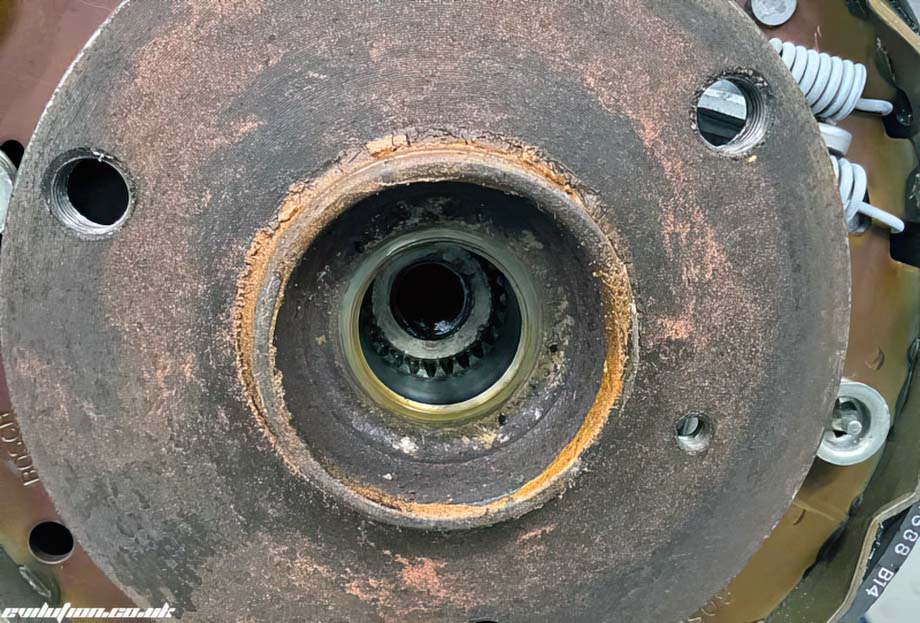

If you look in the hole, you will see the end of the driveshaft.

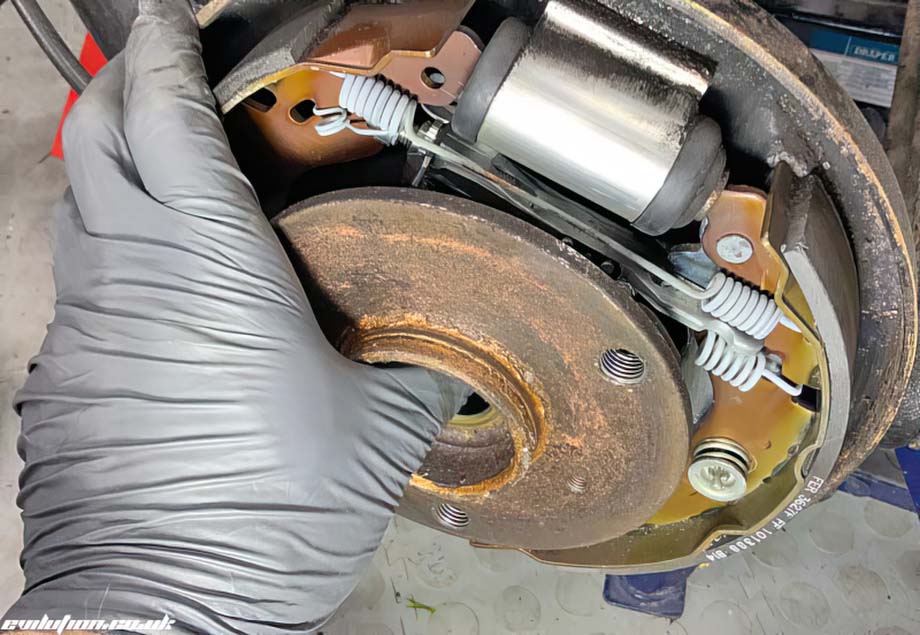

Push it in…

…and it should pop out of the bearing.

Attention

The rest of the information held in this guide is locked to Supporter 6, Supporter 12, Supporter 12+, and Business members of Evilution only.

Use the buttons below to login or find out about becoming a premium member.
