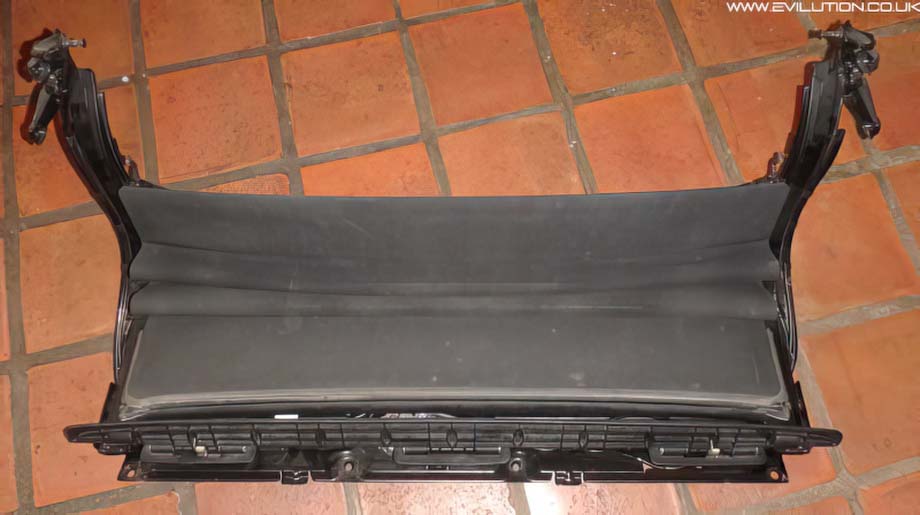

If you just have a hard top and either want a soft top or the option of both, you’re going to have to fit the soft top. Here is the soft top assembly. Thankfully it’s a self contained unit just waiting to be bolted into the car. You will also need the 2 removable side bars.
![](/wp-content/uploads/smartexterior/roof/452softtop/softtop1.jpg)
Fitting The Soft Top Assembly
This retrofit was done on a Roadster coupe but the standard Roadster is almost exactly the same but with far less room to work and a missing tie bar between the B pillars. So, if you have a coupe, remove the tie bar. Pop the rubber cover off the bolt and remove the bolts.
![](/wp-content/uploads/smartexterior/roof/452softtop/softtop2.jpg)

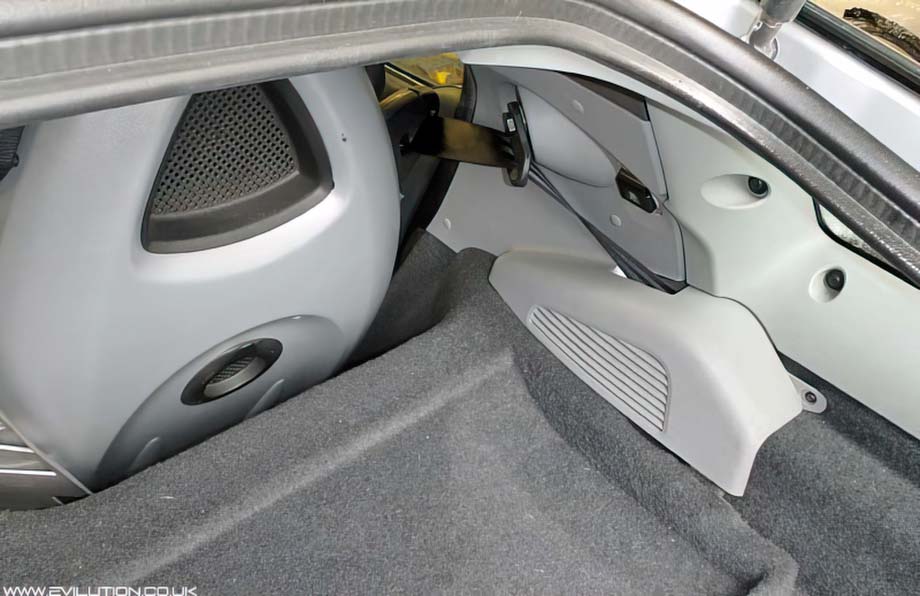

We will have to remove the cover panel…
![](/wp-content/uploads/smartexterior/roof/452softtop/softtop3.jpg)

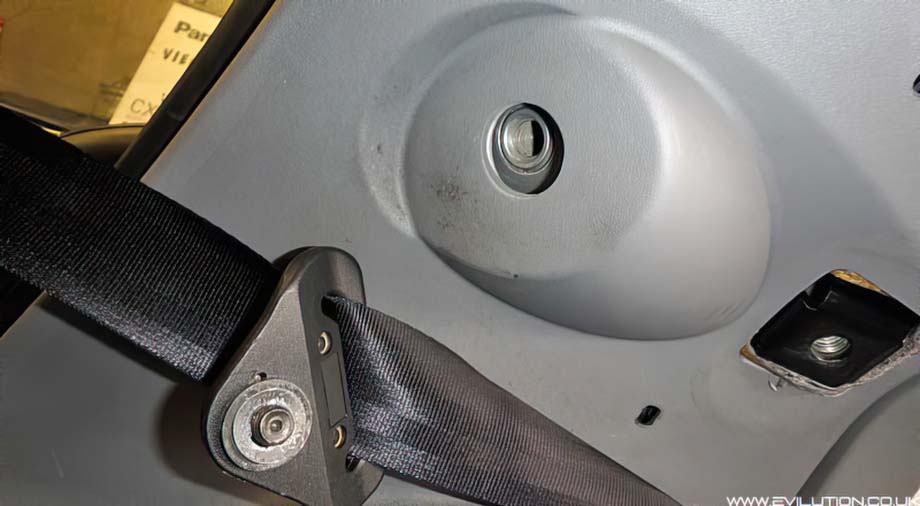

…so unbolt the seat belt guide…
![](/wp-content/uploads/smartexterior/roof/452softtop/softtop4.jpg)

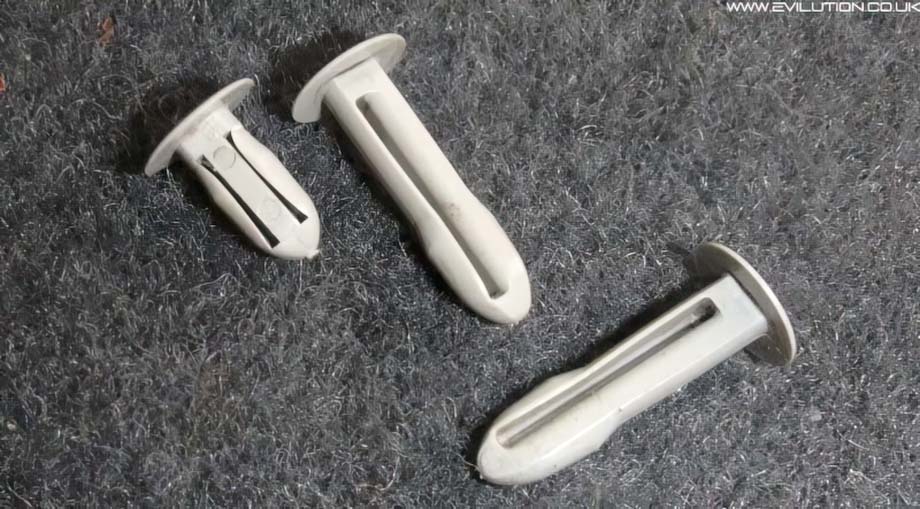

…pull the 3 plastic pegs out…
![](/wp-content/uploads/smartexterior/roof/452softtop/softtop5.jpg)
…and remove the single Torx 20 screw from the back.
![](/wp-content/uploads/smartexterior/roof/452softtop/softtop6.jpg)

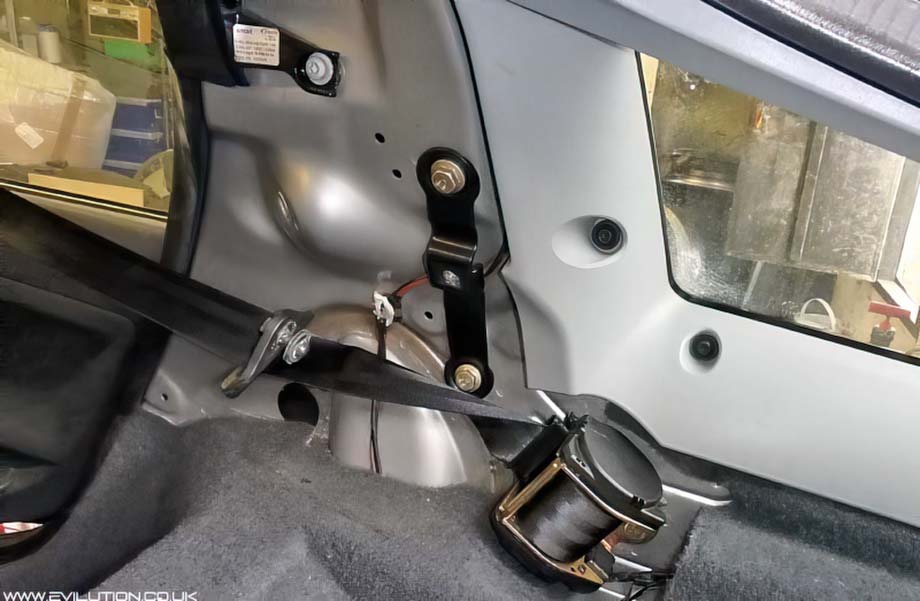

The panel can now be removed.
![](/wp-content/uploads/smartexterior/roof/452softtop/softtop7.jpg)

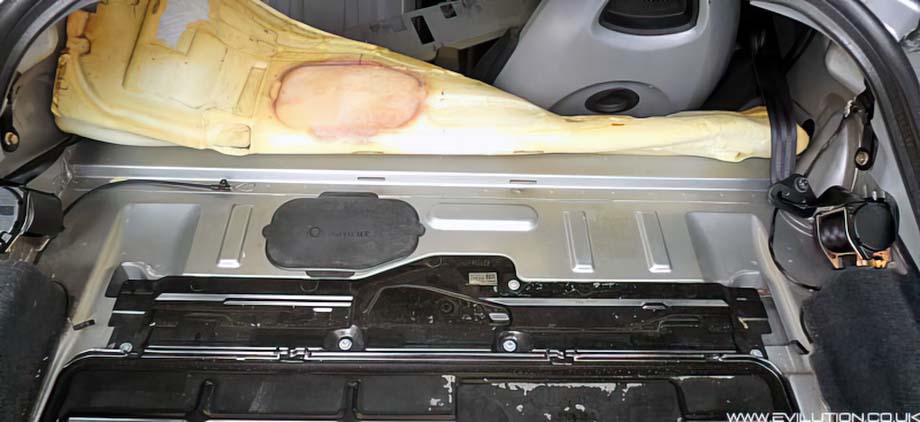

Fold the carpet out of the boot to allow better access. There is a black cover…
![](/wp-content/uploads/smartexterior/roof/452softtop/softtop10.jpg)
